ASAHI FUBUKI®Product Code (REF): WAIN-FBK-6A
ASAHI FUBUKI® is the foundation of Asahi’s high-performance neurovascular guide catheter line, offered in 6, 7 and 8 Fr with shaft inner diameters of 1.80, 2.05 and 2.28 mm (0.071/0.081/0.090 in), angled or straight tips, and usable lengths of 80, 90, 100 and 110 cm. The construction pairs a soft tip and flexible distal shaft that minimise vessel injury with a well-balanced shaft of increased proximal rigidity for stable deployment and optimal pushability. Hydrophilic coating from the tip (15 cm; 5 cm on the 8 Fr and stiff types) smooths navigation through the aortic arch and vessel ostium, while a platinum tip marker and radiopaque shaft material keep the catheter visible throughout the procedure. The 043 distal-access format and the Dilator Kit extend the same platform.
Available under product codes WAIN-FBK-6A, WAIN-FBK-6S, WAIN-FBK-6A80, WAIN-FBK-6S80, WAIN-FBK-6AL, WAIN-FBK-6SL, WAIN-FBK-6A110, WAIN-FBK-6S110 and 12 more (see Ordering Information below).
Sizes & Specifications

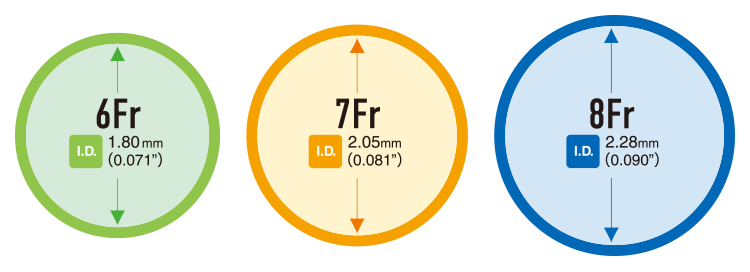

- French size
- 6 / 7 / 8 Fr
- Inner diameter
- 0.071 / 0.081 / 0.090 in
- Usable length
- 80 / 90 / 100 / 110 cm
- Shape
- Angled / Straight
Manufacturer: Asahi Intecc Co., Ltd. · Reference source: medical.asahi-intecc.com
Design & Technology
Technical characteristics and diagrams as published by Asahi Intecc.
Flexibility
Soft tip and flexible distal shaft minimizes vessel injury.
Pushability
Well-balanced shaft with increased rigidity provides stable deployment and optimal pushability.
Lubricity
Hydrophilic coating from the tip to 15cm (FUBUKI 8Fr, FUBUKI Dilator Kit 6Fr, and Stiff type = 5cm) allows smooth navigation through aortic arch and vessel ostium.
Visibility
Radiopaque marker tip & shaft enhance visibility provided by a platinum marker on the tip and radiopaque material in the shaft.
Structure
Product Identification & Specifications
Reference identifiers for procurement, registration and tender documentation.
| Product Code | WAIN-FBK-6A |
|---|---|
| REF Numbers | WAIN-FBK-6A, WAIN-FBK-6S, WAIN-FBK-6A80, WAIN-FBK-6S80, WAIN-FBK-6AL, WAIN-FBK-6SL, WAIN-FBK-6A110, WAIN-FBK-6S110, WAIN-FBK-7A, WAIN-FBK-7S, WAIN-FBK-7A80, WAIN-FBK-7S80, WAIN-FBK-7AL, WAIN-FBK-7SL, WAIN-FBK-7A110, WAIN-FBK-7S110, WAIN-FBK-8S, WAIN-FBK-8S80, WAIN-FBK-8SL, WAIN-FBK-8S110 |
| Manufacturer | Asahi Intecc Co., Ltd. |
| Brand | Asahi Intecc |
| Product Family | Neurovascular Sheaths & Guide Catheters |
| Country Availability | Tajikistan, Afghanistan |
Clinical Applications
The ASAHI FUBUKI® is a neurovascular guide catheter — 6/7/8 fr in the Neurovascular Sheaths & Guide Catheters family from Asahi Intecc Co., Ltd., used by interventional specialists in procedures where a neurovascular guide catheter — 6/7/8 fr of this class is indicated. It is supplied in 20 configurations (catalog codes WAIN-FBK-6A through WAIN-FBK-8S110) to match anatomical and procedural requirements.
For the complete indications for use, contraindications and instructions for use (IFU), request the official Asahi Intecc documentation through our clinical team. Modern Medical Solutions supplies the ASAHI FUBUKI® to hospitals and cath labs across Tajikistan and Afghanistan.
Ordering Information
Catalog reference codes as published by Asahi Intecc. Contact us to confirm current availability.
| Product Name | Catalog No. | French | Shape | Usable Length | Coating Length | Shaft(I.D) |
|---|---|---|---|---|---|---|
| ASAHI FUBUKI | WAIN-FBK-6A | 6Fr | Angled | 90cm | 15cm | 1.80mm (0.071") |
| ASAHI FUBUKI | WAIN-FBK-6S | 6Fr | Straight | 90cm | 15cm | 1.80mm (0.071") |
| ASAHI FUBUKI | WAIN-FBK-6A80 | 6Fr | Angled | 80cm | 15cm | 1.80mm (0.071") |
| ASAHI FUBUKI | WAIN-FBK-6S80 | 6Fr | Straight | 80cm | 15cm | 2.28mm (0.090") |
| ASAHI FUBUKI | WAIN-FBK-6AL | 6Fr | Angled | 100cm | 15cm | 1.80mm (0.071") |
| ASAHI FUBUKI | WAIN-FBK-6SL | 6Fr | Straight | 100cm | 15cm | 1.80mm (0.071") |
| ASAHI FUBUKI | WAIN-FBK-6A110 | 6Fr | Angled | 110cm | 15cm | 1.80mm (0.071") |
| ASAHI FUBUKI | WAIN-FBK-6S110 | 6Fr | Straight | 110cm | 15cm | 1.80mm (0.071") |
| ASAHI FUBUKI | WAIN-FBK-7A | 7Fr | Angled | 90cm | 15cm | 2.05mm (0.081") |
| ASAHI FUBUKI | WAIN-FBK-7S | 7Fr | Straight | 90cm | 15cm | 2.05mm (0.081") |
| ASAHI FUBUKI | WAIN-FBK-7A80 | 7Fr | Angled | 80cm | 15cm | 2.05mm (0.081") |
| ASAHI FUBUKI | WAIN-FBK-7S80 | 7Fr | Straight | 80cm | 15cm | 2.05mm (0.081") |
| ASAHI FUBUKI | WAIN-FBK-7AL | 7Fr | Angled | 100cm | 15cm | 2.05mm (0.081") |
| ASAHI FUBUKI | WAIN-FBK-7SL | 7Fr | Straight | 100cm | 15cm | 2.05mm (0.081") |
| ASAHI FUBUKI | WAIN-FBK-7A110 | 7Fr | Angled | 110cm | 15cm | 2.05mm (0.081") |
| ASAHI FUBUKI | WAIN-FBK-7S110 | 7Fr | Straight | 110cm | 15cm | 2.05mm (0.081") |
| ASAHI FUBUKI | WAIN-FBK-8S | 8Fr | Straight | 90cm | 5cm | 2.28mm (0.090") |
| ASAHI FUBUKI | WAIN-FBK-8S80 | 8Fr | Straight | 80cm | 5cm | 2.28mm (0.090") |
| ASAHI FUBUKI | WAIN-FBK-8SL | 8Fr | Straight | 100cm | 5cm | 2.28mm (0.090") |
| ASAHI FUBUKI | WAIN-FBK-8S110 | 8Fr | Straight | 110cm | 5cm | 2.28mm (0.090") |
Downloads & Documentation
Instructions for use (IFU), technical datasheets and clinical literature for the ASAHI FUBUKI® are available on request from our clinical team.
Request DocumentationFrequently Asked Questions
- What is the ASAHI FUBUKI® used for?
- The ASAHI FUBUKI® is a neurovascular guide catheter — 6/7/8 fr manufactured by Asahi Intecc, used by interventional physicians for precision vascular access procedures. Contact our clinical team for the full indications for use and instructions for use (IFU).
- What sizes does the ASAHI FUBUKI® come in?
- The ASAHI FUBUKI® is available in the following configurations: French size 6 / 7 / 8 Fr, Inner diameter 0.071 / 0.081 / 0.090 in, Usable length 80 / 90 / 100 / 110 cm, Shape Angled / Straight.
- How can I order the ASAHI FUBUKI®?
- Modern Medical Solutions is the authorized Asahi Intecc distributor for Tajikistan and Afghanistan. Submit a documentation or ordering request through our contact form and our clinical team will confirm availability and lead time.
