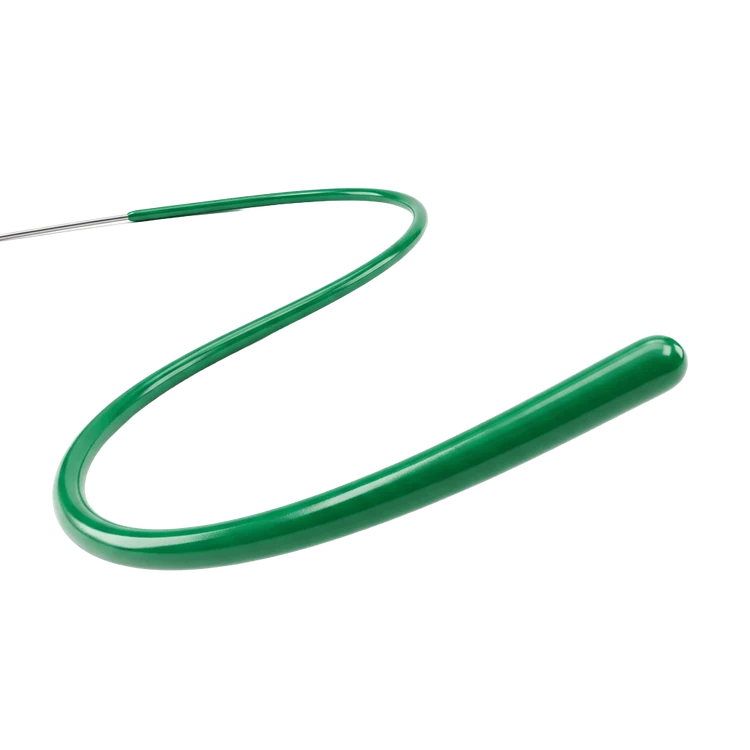

ASAHI Gladius® EXProduct Code (REF): AP14R025P
ASAHI Gladius® EX sets a new standard of middle-weight, non-tapered polymer-jacketed guidewires for coronary CTO intervention. The full polymer jacket with hydrophilic coating lets the wire slip through microchannels and loose tissue planes within the occlusion body, while the middle-weight tip provides more penetration and directional authority than soft tapered polymer wires such as Fielder XT-A — without stepping up to a stiff drilling wire. This makes Gladius EX suited to antegrade crossing of CTOs with tortuous or poorly defined architecture, and to the knuckle-wire technique: the non-tapered tip forms a controlled loop that tracks the vessel course with reduced perforation risk. Built on the 0.014 in platform, compatible with standard coronary microcatheters for support and exchange.
Available under product codes AP14R025P, AP14R325P, AP14R025S, AP14R325S.
Sizes & Specifications
- Diameter
- 0.014 in (0.36 mm)
- Tip design
- Non-tapered, middle-weight
- Jacket
- Full polymer jacket
- Coating
- Hydrophilic
Manufacturer: Asahi Intecc Co., Ltd. · Reference source: medical.asahi-intecc.com
Design & Technology
Technical characteristics and diagrams as published by Asahi Intecc.
High lubricity
ASAHI Gladius EX has the longest hydrophilic coating 1.7 times longer compare to the competitors. This allows the GW to smoothly pass through a long stenotic lesion
The above data was obtained by company standardized test, which may differ from industry standardized tests. The data does not prove that all devices have exactly the same performance with the samples used for these tests.
Structure
Product Identification & Specifications
Reference identifiers for procurement, registration and tender documentation.
| Product Code | AP14R025P |
|---|---|
| REF Numbers | AP14R025P, AP14R325P, AP14R025S, AP14R325S |
| Manufacturer | Asahi Intecc Co., Ltd. |
| Brand | Asahi Intecc |
| Product Family | Coronary Guidewires |
| Country Availability | Tajikistan, Afghanistan |
Clinical Applications
The ASAHI Gladius® EX is a middle-weight polymer-jacketed coronary cto guidewire in the Coronary Guidewires family from Asahi Intecc Co., Ltd., used by interventional specialists in procedures where a middle-weight polymer-jacketed coronary cto guidewire of this class is indicated. It is supplied in 4 configurations (catalog codes AP14R025P through AP14R325S) to match anatomical and procedural requirements.
For the complete indications for use, contraindications and instructions for use (IFU), request the official Asahi Intecc documentation through our clinical team. Modern Medical Solutions supplies the ASAHI Gladius® EX to hospitals and cath labs across Tajikistan and Afghanistan.
Ordering Information
Catalog reference codes as published by Asahi Intecc. Contact us to confirm current availability.
| Product Name | Catalog No. | Tip Shape | Usable Length | Outer Diameter | Coil Length | Radiopaque Length | Coating | Coating Length |
|---|---|---|---|---|---|---|---|---|
| ASAHI Gladius EX | AP14R025P | Pre-shape | 200cm | 0.36mm (0.014") | 11cm | 3cm | Polymer＋Hydrophilic | 50cm |
| ASAHI Gladius EX | AP14R325P | Pre-shape | 300cm | 0.36mm (0.014") | 11cm | 3cm | Polymer＋Hydrophilic | 50cm |
| ASAHI Gladius EX | AP14R025S | Straight | 200cm | 0.36mm (0.014") | 11cm | 3cm | Polymer＋Hydrophilic | 50cm |
| ASAHI Gladius EX | AP14R325S | Straight | 300cm | 0.36mm (0.014") | 11cm | 3cm | Polymer＋Hydrophilic | 50cm |
Downloads & Documentation
Instructions for use (IFU), technical datasheets and clinical literature for the ASAHI Gladius® EX are available on request from our clinical team.
Request DocumentationFrequently Asked Questions
- What is the ASAHI Gladius® EX used for?
- The ASAHI Gladius® EX is a middle-weight polymer-jacketed coronary cto guidewire manufactured by Asahi Intecc, used by interventional physicians for precision vascular access procedures. Contact our clinical team for the full indications for use and instructions for use (IFU).
- What sizes does the ASAHI Gladius® EX come in?
- The ASAHI Gladius® EX is available in the following configurations: Diameter 0.014 in (0.36 mm), Tip design Non-tapered, middle-weight, Jacket Full polymer jacket, Coating Hydrophilic.
- How can I order the ASAHI Gladius® EX?
- Modern Medical Solutions is the authorized Asahi Intecc distributor for Tajikistan and Afghanistan. Submit a documentation or ordering request through our contact form and our clinical team will confirm availability and lead time.
