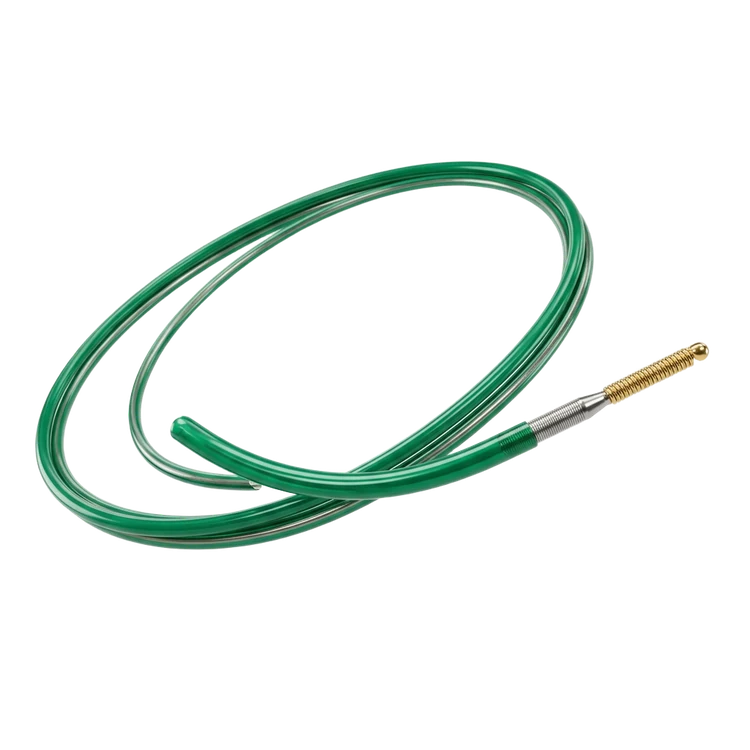

ASAHI Gladius® MG / MG ESProduct Code (REF): AP14R023P
ASAHI Gladius® MG extends the Gladius platform with a modified core construction designed to minimise wire prolapse — the tendency of a polymer-jacketed tip to buckle and fold back on itself when pushed against a resistant proximal cap. By resisting prolapse, Gladius MG keeps the tip aligned with the intended penetration vector, letting the operator apply forward force at fibrous caps and within the occlusion body without losing directional control. In the CTO wire escalation sequence it occupies the step where a standard middle-weight polymer wire deflects or folds, but a full stiff-wire escalation is not yet justified. The polymer jacket and hydrophilic coating preserve the low-friction tracking of the Gladius family in both antegrade and retrograde strategies. 0.014 in platform, compatible with standard coronary microcatheters.
Available under product codes AP14R023P, AP14R023S, AP14R323P, AP14R323S, AP14R024P, AP14R024S, AP14R324P, AP14R324S.
Sizes & Specifications
- Diameter
- 0.014 in (0.36 mm)
- Core
- Modified prolapse-resistant design
- Jacket
- Full polymer jacket
- Coating
- Hydrophilic
Manufacturer: Asahi Intecc Co., Ltd. · Reference source: medical.asahi-intecc.com
Design & Technology
Technical characteristics and diagrams as published by Asahi Intecc.

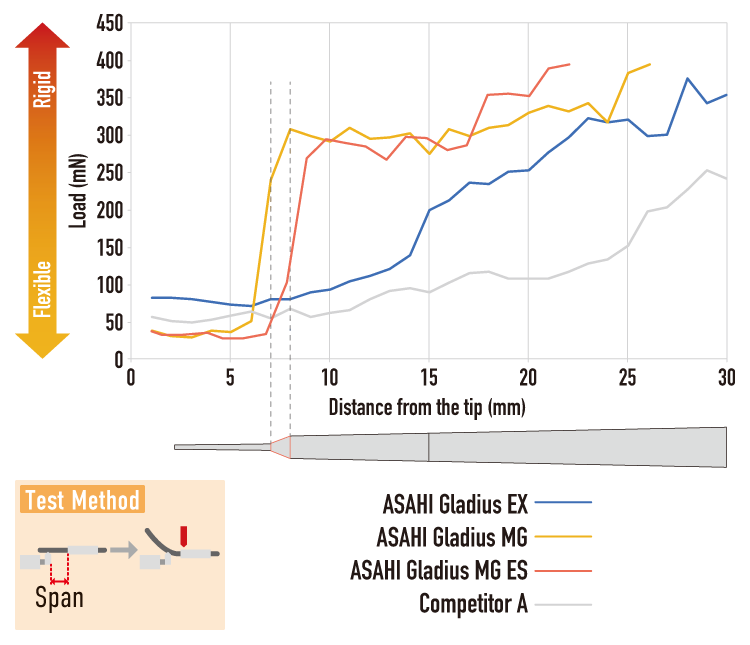

Minimizing prolapse
Gladius MG has a modified distal core balance that minimizes a prolapse occurring in the tip.

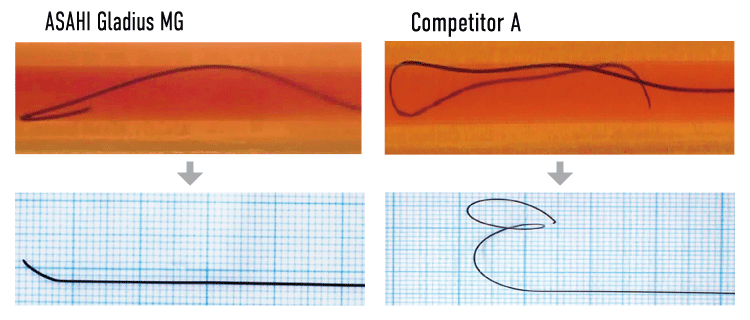

Excellent Durability
ASAHI Gladius MG maintains shape and guidewire performance even after crossing the lesion.

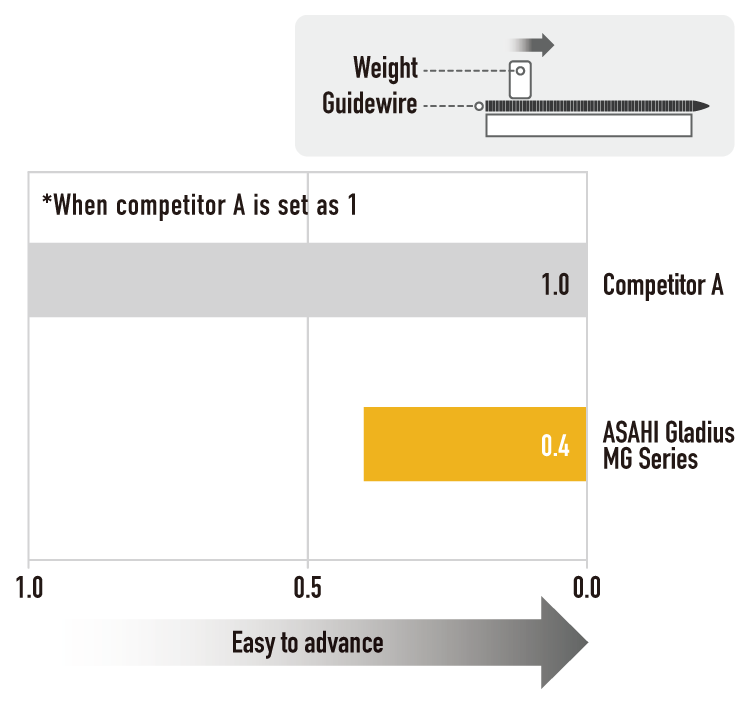

High Lubricity
ASAHI Gladius MG has excellent lubricity that allows for smooth GW manipulation.

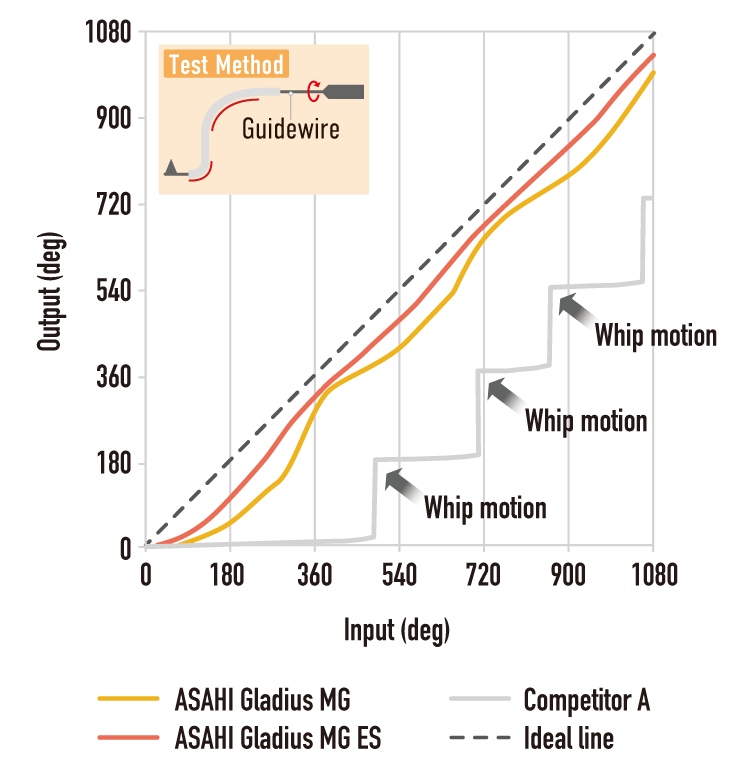

Torque response
ACT ONE provides better torque response with no whip motion.
The above data was obtained by company standardized test, which may differ from industry standardized tests. The data does not prove that all devices have exactly the same performance with the samples used for these tests.

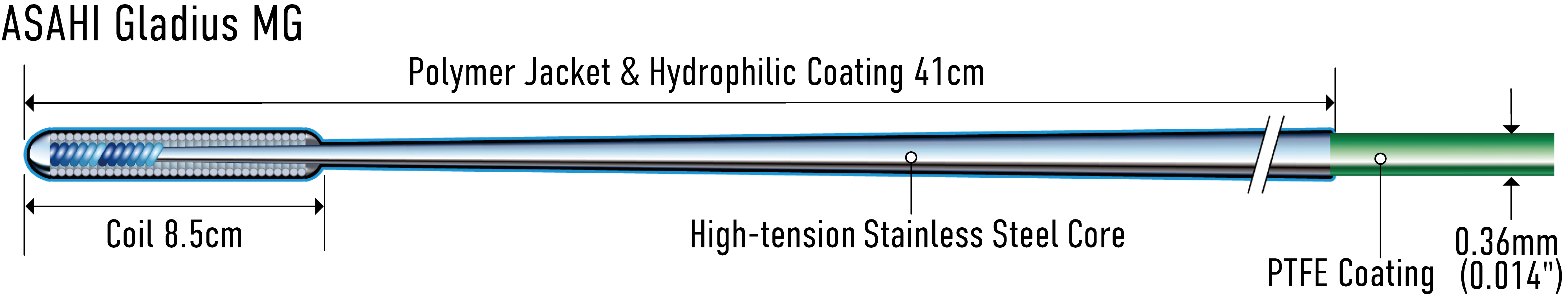

Structure
Product Identification & Specifications
Reference identifiers for procurement, registration and tender documentation.
| Product Code | AP14R023P |
|---|---|
| REF Numbers | AP14R023P, AP14R023S, AP14R323P, AP14R323S, AP14R024P, AP14R024S, AP14R324P, AP14R324S |
| Manufacturer | Asahi Intecc Co., Ltd. |
| Brand | Asahi Intecc |
| Product Family | Coronary Guidewires |
| Country Availability | Tajikistan, Afghanistan |
Clinical Applications
The ASAHI Gladius® MG / MG ES is a polymer-jacketed coronary cto guidewire — prolapse-minimizing core in the Coronary Guidewires family from Asahi Intecc Co., Ltd., used by interventional specialists in procedures where a polymer-jacketed coronary cto guidewire — prolapse-minimizing core of this class is indicated. It is supplied in 8 configurations (catalog codes AP14R023P through AP14R324S) to match anatomical and procedural requirements.
For the complete indications for use, contraindications and instructions for use (IFU), request the official Asahi Intecc documentation through our clinical team. Modern Medical Solutions supplies the ASAHI Gladius® MG / MG ES to hospitals and cath labs across Tajikistan and Afghanistan.
Ordering Information
Catalog reference codes as published by Asahi Intecc. Contact us to confirm current availability.
| Product Name | Catalog No. | Tip Shape | Usable Length | Outer Diameter | Coil Length | Radiopaque Length | Coating | Coating Length |
|---|---|---|---|---|---|---|---|---|
| ASAHI Gladius MG | AP14R023P | Pre-shape | 190cm | 0.36mm (0.014") | 8.5cm | 3cm | Polymer＋Hydrophilic | 41cm |
| ASAHI Gladius MG | AP14R023S | Straight | 190cm | 0.36mm (0.014") | 8.5cm | 3cm | Polymer＋Hydrophilic | 41cm |
| ASAHI Gladius MG | AP14R323P | Pre-shape | 300cm | 0.36mm (0.014") | 8.5cm | 3cm | Polymer＋Hydrophilic | 41cm |
| ASAHI Gladius MG | AP14R323S | Straight | 300cm | 0.36mm (0.014") | 8.5cm | 3cm | Polymer＋Hydrophilic | 41cm |
| ASAHI Gladius MG ES | AP14R024P | Pre-shape | 190cm | 0.36mm (0.014") | 3cm | 3cm | Polymer＋Hydrophilic | 10cm |
| ASAHI Gladius MG ES | AP14R024S | Straight | 190cm | 0.36mm (0.014") | 3cm | 3cm | Polymer＋Hydrophilic | 10cm |
| ASAHI Gladius MG ES | AP14R324P | Pre-shape | 300cm | 0.36mm (0.014") | 3cm | 3cm | Polymer＋Hydrophilic | 10cm |
| ASAHI Gladius MG ES | AP14R324S | Straight | 300cm | 0.36mm (0.014") | 3cm | 3cm | Polymer＋Hydrophilic | 10cm |
Downloads & Documentation
Instructions for use (IFU), technical datasheets and clinical literature for the ASAHI Gladius® MG / MG ES are available on request from our clinical team.
Request DocumentationFrequently Asked Questions
- What is the ASAHI Gladius® MG / MG ES used for?
- The ASAHI Gladius® MG / MG ES is a polymer-jacketed coronary cto guidewire — prolapse-minimizing core manufactured by Asahi Intecc, used by interventional physicians for precision vascular access procedures. Contact our clinical team for the full indications for use and instructions for use (IFU).
- What sizes does the ASAHI Gladius® MG / MG ES come in?
- The ASAHI Gladius® MG / MG ES is available in the following configurations: Diameter 0.014 in (0.36 mm), Core Modified prolapse-resistant design, Jacket Full polymer jacket, Coating Hydrophilic.
- How can I order the ASAHI Gladius® MG / MG ES?
- Modern Medical Solutions is the authorized Asahi Intecc distributor for Tajikistan and Afghanistan. Submit a documentation or ordering request through our contact form and our clinical team will confirm availability and lead time.
