ASAHI Miracle/MIRACLEbrosProduct Code (REF): AG14M050
MIRACLEBROS is a graduated tip-load guidewire family (3, 4.5, 6, 9, and 12 gf grades) that lets operators step up penetrating force incrementally as lesion resistance is assessed, a classic tiered approach to escalating CTO crossing strategy.
Available under product codes AG14M050, AG14M050J, AG14M350, AG14M060, AG14M360, AG14M070, AG14M070J, AG14M370.
Sizes & Specifications
- Diameter
- 0.014 in (0.36 mm)
- Usable length
- 180 cm / 300 cm
- Tip load
- 3 / 6 / 12 gf grades
- Coating
- Silicone
Manufacturer: Asahi Intecc Co., Ltd. · Reference source: medical.asahi-intecc.com
Design & Technology
Technical characteristics and diagrams as published by Asahi Intecc.

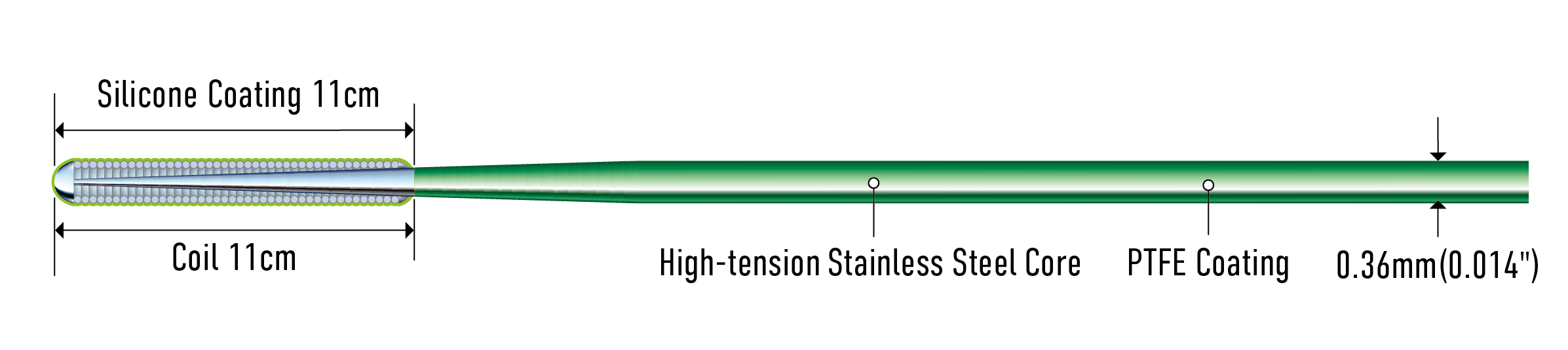

Structure
Product Identification & Specifications
Reference identifiers for procurement, registration and tender documentation.
| Product Code | AG14M050 |
|---|---|
| REF Numbers | AG14M050, AG14M050J, AG14M350, AG14M060, AG14M360, AG14M070, AG14M070J, AG14M370 |
| Manufacturer | Asahi Intecc Co., Ltd. |
| Brand | Asahi Intecc |
| Product Family | Coronary Guidewires |
| Country Availability | Tajikistan, Afghanistan |
Clinical Applications
The ASAHI Miracle/MIRACLEbros is a cto guidewire in the Coronary Guidewires family from Asahi Intecc Co., Ltd., used by interventional specialists in procedures where a cto guidewire of this class is indicated. It is supplied in 8 configurations (catalog codes AG14M050 through AG14M370) to match anatomical and procedural requirements.
For the complete indications for use, contraindications and instructions for use (IFU), request the official Asahi Intecc documentation through our clinical team. Modern Medical Solutions supplies the ASAHI Miracle/MIRACLEbros to hospitals and cath labs across Tajikistan and Afghanistan.
Ordering Information
Catalog reference codes as published by Asahi Intecc. Contact us to confirm current availability.
| Product Name | Catalog No. | Tip Shape | Usable Length | Outer Diameter | Coil Length | Radiopaque Length | Coating | Coating Length |
|---|---|---|---|---|---|---|---|---|
| ASAHI Miracle 3/MIRACLEbros 3 | AG14M050 | Straight | 180cm | 0.36mm (0.014") | 11cm | 11cm | Silicone | 11cm |
| ASAHI Miracle 3/MIRACLEbros 3 | AG14M050J | J | 180cm | 0.36mm (0.014") | 11cm | 11cm | Silicone | 11cm |
| ASAHI Miracle 3/MIRACLEbros 3 | AG14M350 | Straight | 300cm | 0.36mm (0.014") | 11cm | 11cm | Silicone | 11cm |
| ASAHI Miracle 6/MIRACLEbros 6 | AG14M060 | Straight | 180cm | 0.36mm (0.014") | 11cm | 11cm | Silicone | 11cm |
| ASAHI Miracle 6/MIRACLEbros 6 | AG14M360 | Straight | 300cm | 0.36mm (0.014") | 11cm | 11cm | Silicone | 11cm |
| ASAHI Miracle 12/MIRACLEbros 12 | AG14M070 | Straight | 180cm | 0.36mm (0.014") | 11cm | 11cm | Silicone | 11cm |
| ASAHI Miracle 12/MIRACLEbros 12 | AG14M070J | J | 180cm | 0.36mm (0.014") | 11cm | 11cm | Silicone | 11cm |
| ASAHI Miracle 12/MIRACLEbros 12 | AG14M370 | Straight | 300cm | 0.36mm (0.014") | 11cm | 11cm | Silicone | 11cm |
Downloads & Documentation
Instructions for use (IFU), technical datasheets and clinical literature for the ASAHI Miracle/MIRACLEbros are available on request from our clinical team.
Request DocumentationFrequently Asked Questions
- What is the ASAHI Miracle/MIRACLEbros used for?
- The ASAHI Miracle/MIRACLEbros is a cto guidewire manufactured by Asahi Intecc, used by interventional physicians for precision vascular access procedures. Contact our clinical team for the full indications for use and instructions for use (IFU).
- What sizes does the ASAHI Miracle/MIRACLEbros come in?
- The ASAHI Miracle/MIRACLEbros is available in the following configurations: Diameter 0.014 in (0.36 mm), Usable length 180 cm / 300 cm, Tip load 3 / 6 / 12 gf grades, Coating Silicone.
- How can I order the ASAHI Miracle/MIRACLEbros?
- Modern Medical Solutions is the authorized Asahi Intecc distributor for Tajikistan and Afghanistan. Submit a documentation or ordering request through our contact form and our clinical team will confirm availability and lead time.
