What is the ASAHI Masters PARKWAY® HF/KIT used for?

The ASAHI Masters PARKWAY® HF/KIT is a high-flow interventional radiology microcatheter — 0.027 in lumen manufactured by Asahi Intecc, used by interventional physicians for precision vascular access procedures. Contact our clinical team for the full indications for use and instructions for use (IFU).

What sizes does the ASAHI Masters PARKWAY® HF/KIT come in?

The ASAHI Masters PARKWAY® HF/KIT is available in the following configurations: Profile 2.6 Fr distal / 2.8 Fr proximal, Inner diameter 0.026 / 0.027 in, Max. guidewire 0.021 in (0.53 mm), Usable length 105 / 125 / 150 cm.

How can I order the ASAHI Masters PARKWAY® HF/KIT?

Modern Medical Solutions is the authorized Asahi Intecc distributor for Tajikistan and Afghanistan. Submit a documentation or ordering request through our contact form and our clinical team will confirm availability and lead time.

High-flow interventional radiology microcatheter — 0.027 in lumen · Interventional Radiology

ASAHI Masters PARKWAY® HF/KIT

ASAHI Masters PARKWAY® HF is the high-flow member of the Masters PARKWAY microcatheter line for interventional radiology. Tungsten braiding preserves lumen integrity under torque and enhances radiographic visibility, while the 0.88/0.93 mm (2.6/2.8 Fr) shaft carries an exceptionally large 0.66/0.69 mm (0.026/0.027 in) lumen — sized to deliver high volumes of contrast and therapeutic agents and to accept guidewires up to 0.53 mm (0.021 in). Straight, angled and multi-curve tip shapes are offered across 105, 125 and 150 cm usable lengths. The HF/KIT configuration packages the catheter pre-loaded with a 0.021 in guidewire, ready for immediate advancement. Asahi's MEA catalogue does not publish an ordering table for this line — contact us for regional availability and codes.

Sizes & Specifications

Profile: 2.6 Fr distal / 2.8 Fr proximal
Inner diameter: 0.026 / 0.027 in
Max. guidewire: 0.021 in (0.53 mm)
Usable length: 105 / 125 / 150 cm

Request Documentation More Interventional Radiology

Manufacturer: Asahi Intecc Co., Ltd. · Reference source: medical.asahi-intecc.com

Design & Technology

Technical characteristics and diagrams as published by Asahi Intecc.

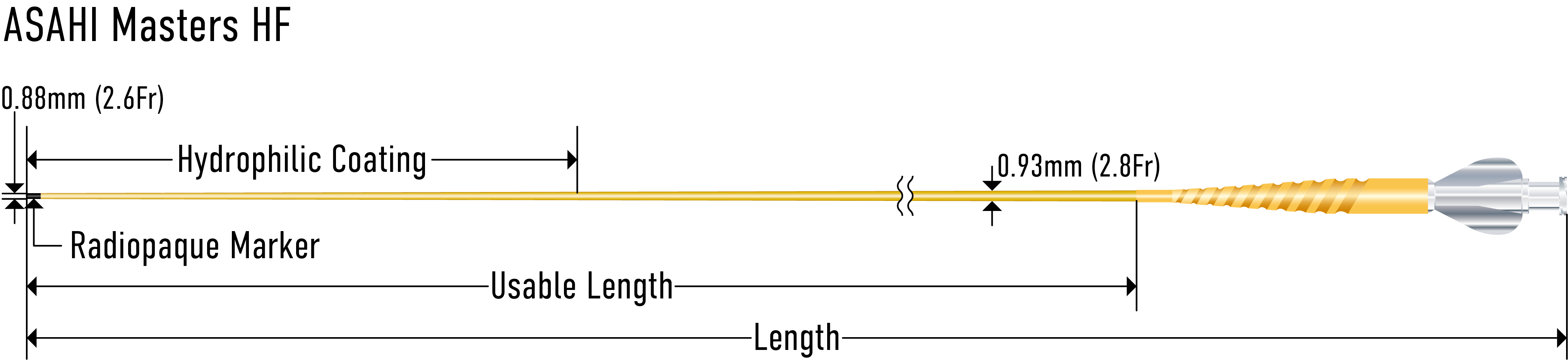

Structure

Product Features

Design characteristics as published by Asahi Intecc.

High volume of contrast and therapeutic agents through 0.69mm(0.027inch)large inner lumen.

0.53mm(0.021inch)guide wire pre-loaded for Masters PARKWAY HF

Product Identification & Specifications

Reference identifiers for procurement, registration and tender documentation.

Manufacturer	Asahi Intecc Co., Ltd.
Brand	Asahi Intecc
Product Family	Interventional Radiology
Country Availability	Tajikistan, Afghanistan

Clinical Applications

The ASAHI Masters PARKWAY® HF/KIT is a high-flow interventional radiology microcatheter — 0.027 in lumen in the Interventional Radiology family from Asahi Intecc Co., Ltd., used by interventional specialists in procedures where a high-flow interventional radiology microcatheter — 0.027 in lumen of this class is indicated.

For the complete indications for use, contraindications and instructions for use (IFU), request the official Asahi Intecc documentation through our clinical team. Modern Medical Solutions supplies the ASAHI Masters PARKWAY® HF/KIT to hospitals and cath labs across Tajikistan and Afghanistan.

Downloads & Documentation

Instructions for use (IFU), technical datasheets and clinical literature for the ASAHI Masters PARKWAY® HF/KIT are available on request from our clinical team.

Request Documentation

Frequently Asked Questions

What is the ASAHI Masters PARKWAY® HF/KIT used for?: The ASAHI Masters PARKWAY® HF/KIT is a high-flow interventional radiology microcatheter — 0.027 in lumen manufactured by Asahi Intecc, used by interventional physicians for precision vascular access procedures. Contact our clinical team for the full indications for use and instructions for use (IFU).
What sizes does the ASAHI Masters PARKWAY® HF/KIT come in?: The ASAHI Masters PARKWAY® HF/KIT is available in the following configurations: Profile 2.6 Fr distal / 2.8 Fr proximal, Inner diameter 0.026 / 0.027 in, Max. guidewire 0.021 in (0.53 mm), Usable length 105 / 125 / 150 cm.
How can I order the ASAHI Masters PARKWAY® HF/KIT?: Modern Medical Solutions is the authorized Asahi Intecc distributor for Tajikistan and Afghanistan. Submit a documentation or ordering request through our contact form and our clinical team will confirm availability and lead time.
