ASAHI ULTIMATEbros3Product Code (REF): AHW14S003S
ULTIMATEbros 3 is a high tip-load penetration wire reserved for stubborn fibrous or calcified proximal caps where standard CTO wires fail to advance, delivering added piercing force while retaining a torque-responsive shaft.
Available under product codes AHW14S003S, AHW14S303S, AHW14S003J, AHW14S303J.
Sizes & Specifications
- Diameter
- 0.014 in (0.36 mm)
- Usable length
- 180 cm / 300 cm
- Tip load
- ≈ 3 gf
- Coating
- Hydrophilic tip (Uncoated Ball Tip)
Manufacturer: Asahi Intecc Co., Ltd. · Reference source: medical.asahi-intecc.com
Design & Technology
Technical characteristics and diagrams as published by Asahi Intecc.

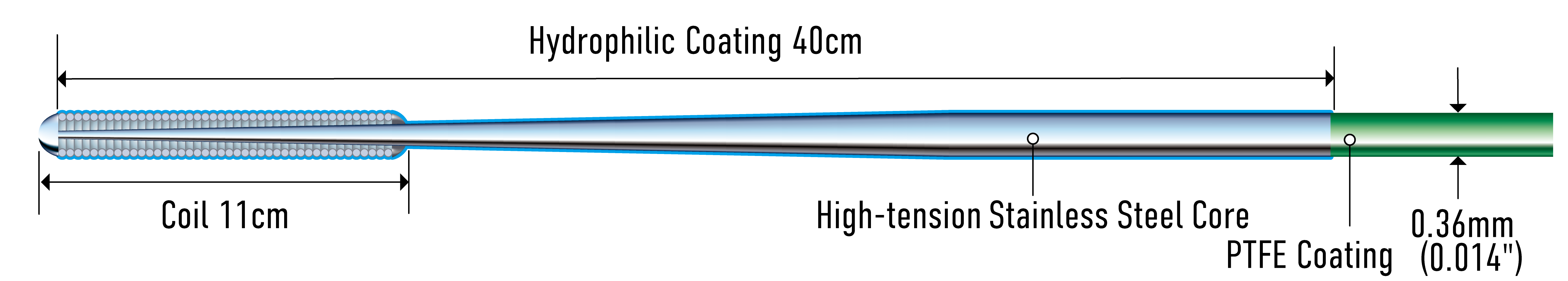

Structure
Product Identification & Specifications
Reference identifiers for procurement, registration and tender documentation.
| Product Code | AHW14S003S |
|---|---|
| REF Numbers | AHW14S003S, AHW14S303S, AHW14S003J, AHW14S303J |
| Manufacturer | Asahi Intecc Co., Ltd. |
| Brand | Asahi Intecc |
| Product Family | Coronary Guidewires |
| Country Availability | Tajikistan, Afghanistan |
Clinical Applications
The ASAHI ULTIMATEbros3 is a cto guidewire in the Coronary Guidewires family from Asahi Intecc Co., Ltd., used by interventional specialists in procedures where a cto guidewire of this class is indicated. It is supplied in 4 configurations (catalog codes AHW14S003S through AHW14S303J) to match anatomical and procedural requirements.
For the complete indications for use, contraindications and instructions for use (IFU), request the official Asahi Intecc documentation through our clinical team. Modern Medical Solutions supplies the ASAHI ULTIMATEbros3 to hospitals and cath labs across Tajikistan and Afghanistan.
Ordering Information
Catalog reference codes as published by Asahi Intecc. Contact us to confirm current availability.
| Product Name | Catalog No. | Tip Shape | Usable Length | Outer Diameter | Coil Length | Radiopaque Length | Coating | Coating Length |
|---|---|---|---|---|---|---|---|---|
| ULTIMATEbros3 | AHW14S003S | Straight | 180cm | 0.36mm (0.014") | 11cm | 11cm | Hydrophilic(Uncoated Ball Tip) | 40cm |
| ULTIMATEbros3 | AHW14S303S | Straight | 300cm | 0.36mm (0.014") | 11cm | 11cm | Hydrophilic(Uncoated Ball Tip) | 40cm |
| ULTIMATEbros3 | AHW14S003J | J | 180cm | 0.36mm (0.014") | 11cm | 11cm | Hydrophilic(Uncoated Ball Tip) | 40cm |
| ULTIMATEbros3 | AHW14S303J | J | 300cm | 0.36mm (0.014") | 11cm | 11cm | Hydrophilic(Uncoated Ball Tip) | 40cm |
Downloads & Documentation
Instructions for use (IFU), technical datasheets and clinical literature for the ASAHI ULTIMATEbros3 are available on request from our clinical team.
Request DocumentationFrequently Asked Questions
- What is the ASAHI ULTIMATEbros3 used for?
- The ASAHI ULTIMATEbros3 is a cto guidewire manufactured by Asahi Intecc, used by interventional physicians for precision vascular access procedures. Contact our clinical team for the full indications for use and instructions for use (IFU).
- What sizes does the ASAHI ULTIMATEbros3 come in?
- The ASAHI ULTIMATEbros3 is available in the following configurations: Diameter 0.014 in (0.36 mm), Usable length 180 cm / 300 cm, Tip load ≈ 3 gf, Coating Hydrophilic tip (Uncoated Ball Tip).
- How can I order the ASAHI ULTIMATEbros3?
- Modern Medical Solutions is the authorized Asahi Intecc distributor for Tajikistan and Afghanistan. Submit a documentation or ordering request through our contact form and our clinical team will confirm availability and lead time.
