ASAHI Veloute®Product Code (REF): VEL105-16S
ASAHI Veloute® is a selective microcatheter for interventional radiology whose slogan — more selective, more effective — reflects its focus on distal vessel selectivity. The distal shaft measures 0.58 mm (1.7 Fr) with a 0.43 mm (0.017 in) lumen, stepping up to 0.94 mm (2.8 Fr) proximally with a 0.59 mm (0.023 in) lumen, and accepts guidewires up to 0.41 mm (0.016 in) — it was developed for compatibility with the ASAHI Meister 16 wire. Proprietary composite braiding of two wire thicknesses gives the shaft its manoeuvrability, and the gradual taper design provides high tactile feedback while keeping manual contrast injection smooth. Straight and angled tips are offered in 105, 125 and 150 cm usable lengths with 65 cm (100 cm on the 150 cm version) of hydrophilic coating; rated to 6,895 kPa (1,000 psi).
Available under product codes VEL105-16S, VEL105-16AS, VEL125-16S, VEL125-16AS, VEL150-16S, VEL150-16AS, VEL105-16Y, VEL105-16AY and 4 more (see Ordering Information below).
Sizes & Specifications
- Profile
- 1.7 Fr distal / 2.8 Fr proximal
- Inner diameter
- 0.017 / 0.023 in
- Max. guidewire
- 0.016 in (0.41 mm)
- Usable length
- 105 / 125 / 150 cm
Manufacturer: Asahi Intecc Co., Ltd. · Reference source: medical.asahi-intecc.com
Design & Technology
Technical characteristics and diagrams as published by Asahi Intecc.

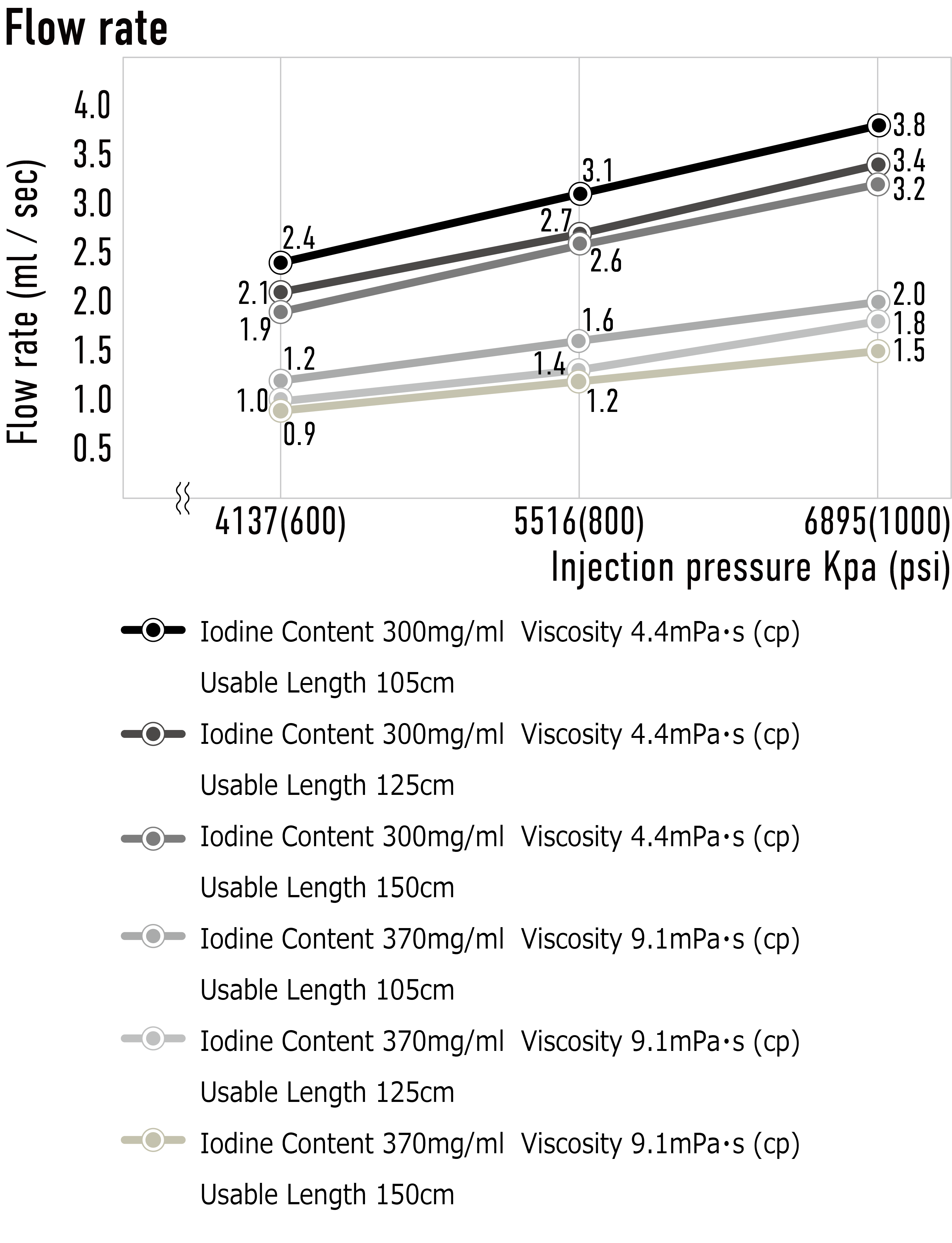

Flow Rate Test
Better Tactile Feedback. The gradual taper design allows higher tactile feedback and easy manual contrast injection keeping a smooth flow.

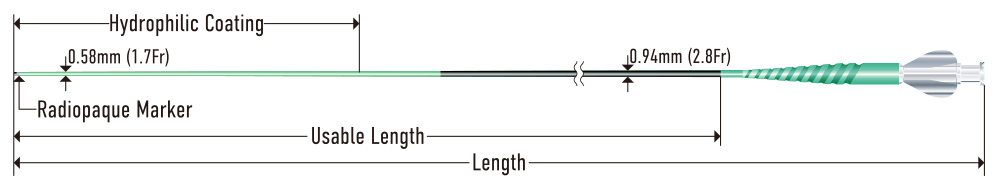

Structure
Product Identification & Specifications
Reference identifiers for procurement, registration and tender documentation.
| Product Code | VEL105-16S |
|---|---|
| REF Numbers | VEL105-16S, VEL105-16AS, VEL125-16S, VEL125-16AS, VEL150-16S, VEL150-16AS, VEL105-16Y, VEL105-16AY, VEL125-16Y, VEL125-16AY, VEL150-16Y, VEL150-16AY |
| Manufacturer | Asahi Intecc Co., Ltd. |
| Brand | Asahi Intecc |
| Product Family | Interventional Radiology |
| Country Availability | Tajikistan, Afghanistan |
Clinical Applications
The ASAHI Veloute® is a interventional radiology microcatheter — 1.7/2.8 fr in the Interventional Radiology family from Asahi Intecc Co., Ltd., used by interventional specialists in procedures where a interventional radiology microcatheter — 1.7/2.8 fr of this class is indicated. It is supplied in 12 configurations (catalog codes VEL105-16S through VEL150-16AY) to match anatomical and procedural requirements.
For the complete indications for use, contraindications and instructions for use (IFU), request the official Asahi Intecc documentation through our clinical team. Modern Medical Solutions supplies the ASAHI Veloute® to hospitals and cath labs across Tajikistan and Afghanistan.
Ordering Information
Catalog reference codes as published by Asahi Intecc. Contact us to confirm current availability.
| Product Name | Catalog No. | Usable Length | O.D. of Distal shaft /O.D. of Proximal shaft | I.D. of Distal shaft /I.D. of Proximal shaft | Max. Guide Wire | Hydrophilic Coating Length | Tip Shape | Max. Pressure |
|---|---|---|---|---|---|---|---|---|
| ASAHI Veloute | VEL105-16S | 105cm | 0.58/0.94mm (1.7/2.8Fr) | 0.43/0.59mm (0.017/0.023") | 0.41mm (0.016") | 65cm | Straight | 6895kPa (1000psi) |
| ASAHI Veloute | VEL105-16AS | 105cm | 0.58/0.94mm (1.7/2.8Fr) | 0.43/0.59mm (0.017/0.023") | 0.41mm (0.016") | 65cm | Angle | 6895kPa (1000psi) |
| ASAHI Veloute | VEL125-16S | 125cm | 0.58/0.94mm (1.7/2.8Fr) | 0.43/0.59mm (0.017/0.023") | 0.41mm (0.016") | 65cm | Straight | 6895kPa (1000psi) |
| ASAHI Veloute | VEL125-16AS | 125cm | 0.58/0.94mm (1.7/2.8Fr) | 0.43/0.59mm (0.017/0.023") | 0.41mm (0.016") | 65cm | Angle | 6895kPa (1000psi) |
| ASAHI Veloute | VEL150-16S | 150cm | 0.58/0.94mm (1.7/2.8Fr) | 0.43/0.59mm (0.017/0.023") | 0.41mm (0.016") | 100cm | Straight | 6895kPa (1000psi) |
| ASAHI Veloute | VEL150-16AS | 150cm | 0.58/0.94mm (1.7/2.8Fr) | 0.43/0.59mm (0.017/0.023") | 0.41mm (0.016") | 100cm | Angle | 6895kPa (1000psi) |
| ASAHI Veloute | VEL105-16Y | 105cm | 0.58/0.94mm (1.7/2.8Fr) | 0.43/0.59mm (0.017/0.023") | 0.41mm (0.016") | 65cm | Straight | 6895kPa (1000psi) |
| ASAHI Veloute | VEL105-16AY | 105cm | 0.58/0.94mm (1.7/2.8Fr) | 0.43/0.59mm (0.017/0.023") | 0.41mm (0.016") | 65cm | Angle | 6895kPa (1000psi) |
| ASAHI Veloute | VEL125-16Y | 125cm | 0.58/0.94mm (1.7/2.8Fr) | 0.43/0.59mm (0.017/0.023") | 0.41mm (0.016") | 65cm | Straight | 6895kPa (1000psi) |
| ASAHI Veloute | VEL125-16AY | 125cm | 0.58/0.94mm (1.7/2.8Fr) | 0.43/0.59mm (0.017/0.023") | 0.41mm (0.016") | 65cm | Angle | 6895kPa (1000psi) |
| ASAHI Veloute | VEL150-16Y | 150cm | 0.58/0.94mm (1.7/2.8Fr) | 0.43/0.59mm (0.017/0.023") | 0.41mm (0.016") | 100cm | Straight | 6895kPa (1000psi) |
| ASAHI Veloute | VEL150-16AY | 150cm | 0.58/0.94mm (1.7/2.8Fr) | 0.43/0.59mm (0.017/0.023") | 0.41mm (0.016") | 100cm | Angle | 6895kPa (1000psi) |
Downloads & Documentation
Instructions for use (IFU), technical datasheets and clinical literature for the ASAHI Veloute® are available on request from our clinical team.
Request DocumentationFrequently Asked Questions
- What is the ASAHI Veloute® used for?
- The ASAHI Veloute® is a interventional radiology microcatheter — 1.7/2.8 fr manufactured by Asahi Intecc, used by interventional physicians for precision vascular access procedures. Contact our clinical team for the full indications for use and instructions for use (IFU).
- What sizes does the ASAHI Veloute® come in?
- The ASAHI Veloute® is available in the following configurations: Profile 1.7 Fr distal / 2.8 Fr proximal, Inner diameter 0.017 / 0.023 in, Max. guidewire 0.016 in (0.41 mm), Usable length 105 / 125 / 150 cm.
- How can I order the ASAHI Veloute®?
- Modern Medical Solutions is the authorized Asahi Intecc distributor for Tajikistan and Afghanistan. Submit a documentation or ordering request through our contact form and our clinical team will confirm availability and lead time.
