Amplatzer™ Septal OccludersProduct Code (REF): 9-ASD-004
Amplatzer™ Septal Occluders are the standard of care for minimally invasive atrial septal defect (ASD) closure. These double-disc occluders are comprised of nitinol mesh and polyester material, and are designed to securely appose the septal wall on each side of the defect and create a platform for tissue in-growth after implantation. Atrial septal defects come in a variety of shapes and sizes, and there can often be multiple, or fenestrated, ASDs. The Amplatzer™ Septal Occluder has a wide waist that centers the device and fills the ASD for optimal occlusion; its transcatheter delivery makes it the proven standard of care for the occlusion of ASDs. The Amplatzer™ Multifenestrated Septal Occluder “Cribriform” has a narrow waist, which allows for placement through a central defect, and matched disc diameters that maximize coverage of multiple fenestrations — enabling occlusion of the defect by covering the fenestrations with a single device.
Available under product codes 9-ASD-004, 9-ASD-005, 9-ASD-006, 9-ASD-007, 9-ASD-008, 9-ASD-009, 9-ASD-010, 9-ASD-011 and 24 more (see Ordering Information below).
Sizes & Specifications
- Indication
- Atrial septal defect (ASD) closure
- Construction
- Nitinol mesh and polyester material
- Septal Occluder waist range
- 4–40 mm
- Cribriform disc range
- 18–40 mm (3 mm waist width)
Manufacturer: Abbott Laboratories · Reference source: cardiovascular.abbott
Design & Technology
Technical characteristics and diagrams as published by Abbott.

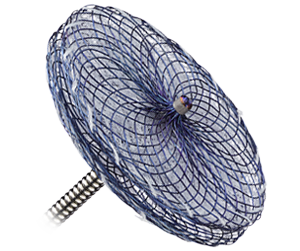

Amplatzer™ Cribriform Multi-Fenestrated Septal Occluder
The Amplatzer™ Cribriform Occluder has a narrow waist, which allows for placement through a central defect, and matched disc diameters that maximize coverage of multiple fenestrations, enabling occlusion by covering the fenestrations with a single device.
Product Identification & Specifications
Reference identifiers for procurement, registration and tender documentation.
| Product Code | 9-ASD-004 |
|---|---|
| REF Numbers | 9-ASD-004, 9-ASD-005, 9-ASD-006, 9-ASD-007, 9-ASD-008, 9-ASD-009, 9-ASD-010, 9-ASD-011, 9-ASD-012, 9-ASD-013, 9-ASD-014, 9-ASD-015, 9-ASD-016, 9-ASD-017, 9-ASD-018, 9-ASD-019, 9-ASD-020, 9-ASD-022, 9-ASD-024, 9-ASD-026, 9-ASD-028, 9-ASD-030, 9-ASD-032, 9-ASD-034, 9-ASD-036, 9-ASD-038, 9-ASD-040, 9-ASD-MF-018, 9-ASD-MF-025, 9-ASD-MF-030, 9-ASD-MF-035, 9-ASD-MF-040 |
| Manufacturer | Abbott Laboratories |
| Brand | Abbott |
| Product Family | Structural Interventions |
| Country Availability | Tajikistan, Afghanistan |
Clinical Applications
The Amplatzer™ Septal Occluders is a transcatheter asd closure device family in the Structural Interventions family from Abbott Laboratories, used by interventional specialists in procedures where a transcatheter asd closure device family of this class is indicated. It is supplied in 32 configurations (catalog codes 9-ASD-004 through 9-ASD-MF-040) to match anatomical and procedural requirements.
For the complete indications for use, contraindications and instructions for use (IFU), request the official Abbott documentation through our clinical team. Modern Medical Solutions supplies the Amplatzer™ Septal Occluders to hospitals and cath labs across Tajikistan and Afghanistan.
Ordering Information
Catalog reference codes as published by Abbott. Contact us to confirm current availability.
Amplatzer™ Septal Occluder
| Model/Reorder Number | Waist Diameter (mm) | Waist Width (mm) | Right Atrial Disc Diameter (mm) | Left Atrial Disc Diameter (mm) |
|---|---|---|---|---|
| 9-ASD-004 | 4 | 3 | 12 | 16 |
| 9-ASD-005 | 5 | 3 | 13 | 17 |
| 9-ASD-006 | 6 | 3 | 14 | 18 |
| 9-ASD-007 | 7 | 3 | 15 | 19 |
| 9-ASD-008 | 8 | 3 | 16 | 20 |
| 9-ASD-009 | 9 | 3 | 17 | 21 |
| 9-ASD-010 | 10 | 3 | 18 | 22 |
| 9-ASD-011 | 11 | 4 | 21 | 25 |
| 9-ASD-012 | 12 | 4 | 22 | 26 |
| 9-ASD-013 | 13 | 4 | 23 | 27 |
| 9-ASD-014 | 14 | 4 | 24 | 28 |
| 9-ASD-015 | 15 | 4 | 25 | 29 |
| 9-ASD-016 | 16 | 4 | 26 | 30 |
| 9-ASD-017 | 17 | 4 | 27 | 31 |
| 9-ASD-018 | 18 | 4 | 28 | 32 |
| 9-ASD-019 | 19 | 4 | 29 | 33 |
| 9-ASD-020 | 20 | 4 | 30 | 34 |
| 9-ASD-022 | 22 | 4 | 32 | 36 |
| 9-ASD-024 | 24 | 4 | 34 | 38 |
| 9-ASD-026 | 26 | 4 | 36 | 40 |
| 9-ASD-028 | 28 | 4 | 38 | 42 |
| 9-ASD-030 | 30 | 4 | 40 | 44 |
| 9-ASD-032 | 32 | 4 | 42 | 46 |
| 9-ASD-034 | 34 | 4 | 44 | 50 |
| 9-ASD-036 | 36 | 4 | 46 | 52 |
| 9-ASD-038 | 38 | 4 | 48 | 54 |
| 9-ASD-040 | 40 | 4 | 50 | 56 |
Amplatzer™ Cribriform Multi-Fenestrated Septal Occluder
| Model/Reorder Number | Right & Left Atrium Disc Diameter (mm) | Waist Width (mm) |
|---|---|---|
| 9-ASD-MF-018 | 18 | 3 |
| 9-ASD-MF-025 | 25 | 3 |
| 9-ASD-MF-030 | 30 | 3 |
| 9-ASD-MF-035 | 35 | 3 |
| 9-ASD-MF-040 | 40 | 3 |
Model/Reorder numbers and dimensions per the official Abbott Amplatzer™ Septal Occluders product page ordering information.
Downloads & Documentation
Instructions for use (IFU), technical datasheets and clinical literature for the Amplatzer™ Septal Occluders are available on request from our clinical team.
Request DocumentationFrequently Asked Questions
- What are Amplatzer™ Septal Occluders?
- Amplatzer™ Septal Occluders are double-disc occluders for minimally invasive closure of atrial septal defects (ASD). They are comprised of nitinol mesh and polyester material, designed to securely appose the septal wall on each side of the defect and create a platform for tissue in-growth after implantation.
- How does the Cribriform occluder differ from the standard Septal Occluder?
- The Amplatzer™ Septal Occluder has a wide waist that centers the device and fills the ASD for optimal occlusion. The Amplatzer™ Cribriform Multi-Fenestrated Septal Occluder instead has a narrow waist that allows placement through a central defect, with matched disc diameters that maximize coverage of multiple fenestrations.
- When is the Cribriform occluder used?
- The Cribriform occluder is intended for multiple, or fenestrated, ASDs. Its matched disc diameters enable occlusion of the defect by covering the fenestrations with a single device.
- What sizes are available for the Amplatzer™ Septal Occluder?
- The Amplatzer™ Septal Occluder is offered across waist diameters from 4 mm (9-ASD-004) to 40 mm (9-ASD-040). The Cribriform occluder is offered in matched right and left atrium disc diameters of 18, 25, 30, 35 and 40 mm, each with a 3 mm waist width.
