Amplatzer™ Talisman™ PFO OccluderProduct Code (REF): 9-PFO-1818
Over 25 years ago, Abbott pioneered PFO closure with the Amplatzer™ PFO Occluder. With the introduction of the Amplatzer Talisman PFO Occluder, that proven Amplatzer PFO closure technology has been built upon: the occluder now comes assembled and ready to use, simplifying prep and enhancing ease of use. The 30 mm size has been refined to have a smaller left atrial disc to better avoid interference with surrounding structures. The occluder is offered in four sizes, from a right atrial / left atrial disc combination of 18 mm / 18 mm up to 35 mm / 25 mm, with recommended sheath sizes of 8 F or 9 F (45° curve). Device selection follows the published sizing guidelines: a 25 mm device is suggested for a simple PFO or PFO with a non-prominent ASA; a 30 or 35 mm device for complex PFO with anatomical characteristics such as an atrial septal aneurysm with a long tunnel or thickened septum secundum; and an 18 mm device for PFO with small anatomy (septal primum length < 20 mm). Abbott advises evaluating device position after deployment but before detachment, using echocardiography to ensure the device does not impinge on the free atrial wall or aortic root, and recapturing and redeploying if position is unsatisfactory.
Available under product codes 9-PFO-1818, 9-PFO-2518, 9-PFO-3025, 9-PFO-3525, 9-TDS-08F45-80, 9-TDS-09F45-80, 9-GW-002.
Sizes & Specifications
- Indication
- Patent foramen ovale (PFO) closure
- Disc combinations
- 18/18, 25/18, 30/25, 35/25 mm (RA/LA)
- Recommended sheath
- 8 F (18/25 mm) or 9 F (30/35 mm), 45° curve
- Delivery
- Comes assembled and ready to use
Manufacturer: Abbott Laboratories · Reference source: cardiovascular.abbott
Design & Technology
Technical characteristics and diagrams as published by Abbott.

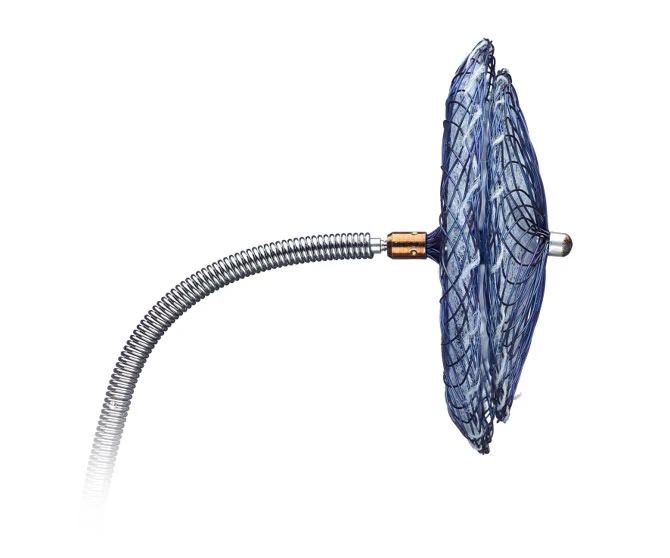

Device profile
The refined 30 mm size features a smaller left atrial disc to better avoid interference with surrounding structures.
Product Identification & Specifications
Reference identifiers for procurement, registration and tender documentation.
| Product Code | 9-PFO-1818 |
|---|---|
| REF Numbers | 9-PFO-1818, 9-PFO-2518, 9-PFO-3025, 9-PFO-3525, 9-TDS-08F45-80, 9-TDS-09F45-80, 9-GW-002 |
| Manufacturer | Abbott Laboratories |
| Brand | Abbott |
| Product Family | Structural Interventions |
| Country Availability | Tajikistan, Afghanistan |
Clinical Applications
The Amplatzer™ Talisman™ PFO Occluder is a transcatheter pfo closure device in the Structural Interventions family from Abbott Laboratories, used by interventional specialists in procedures where a transcatheter pfo closure device of this class is indicated. It is supplied in 7 configurations (catalog codes 9-PFO-1818 through 9-GW-002) to match anatomical and procedural requirements.
For the complete indications for use, contraindications and instructions for use (IFU), request the official Abbott documentation through our clinical team. Modern Medical Solutions supplies the Amplatzer™ Talisman™ PFO Occluder to hospitals and cath labs across Tajikistan and Afghanistan.
Ordering Information
Catalog reference codes as published by Abbott. Contact us to confirm current availability.
Amplatzer™ Talisman™ PFO Occluder
| Model/Reorder Number | Right Atrial Disc Diameter (A) | Left Atrial Disc Diameter (B) | Recommended Sheath Size |
|---|---|---|---|
| 9-PFO-1818 | 18 mm | 18 mm | 8 F; 45° curve |
| 9-PFO-2518 | 25 mm | 18 mm | 8 F; 45° curve |
| 9-PFO-3025 | 30 mm | 25 mm | 9 F; 45° curve |
| 9-PFO-3525 | 35 mm | 25 mm | 9 F; 45° curve |
Delivery accessories
| Model/Reorder Number | Item | Specifications |
|---|---|---|
| 9-TDS-08F45-80 | Amplatzer™ Talisman™ Delivery Sheath | 8 F; 45° tip angle; sheath inner diameter 2.69 mm; sheath outer diameter 3.45 mm; usable length 80 cm |
| 9-TDS-09F45-80 | Amplatzer™ Talisman™ Delivery Sheath | 9 F; 45° tip angle; sheath inner diameter 3.00 mm; sheath outer diameter 3.81 mm; usable length 80 cm |
| 9-GW-002 | Amplatzer™ Guidewire | 0.035 inch diameter; Super Stiff body; 1.55 mm, Modified J-tip; usable length 260 cm |
Model/Reorder numbers and dimensions per the official Abbott Amplatzer™ Talisman™ PFO Occluder product page ordering information. A = right atrial disc diameter, B = left atrial disc diameter.
Downloads & Documentation
Instructions for use (IFU), technical datasheets and clinical literature for the Amplatzer™ Talisman™ PFO Occluder are available on request from our clinical team.
Request DocumentationFrequently Asked Questions
- What is new about the Amplatzer™ Talisman™ PFO Occluder?
- The Amplatzer Talisman PFO Occluder builds upon Abbott's proven Amplatzer PFO closure technology. It now comes assembled and ready to use, simplifying prep and enhancing ease of use, and the 30 mm size has been refined with a smaller left atrial disc to better avoid interference with surrounding structures.
- What sizes and sheath sizes are available?
- The occluder is offered in four sizes: 9-PFO-1818 (18/18 mm), 9-PFO-2518 (25/18 mm), 9-PFO-3025 (30/25 mm) and 9-PFO-3525 (35/25 mm), where the dimensions are right atrial disc / left atrial disc diameter. The 18 and 25 mm devices use an 8 F sheath and the 30 and 35 mm devices use a 9 F sheath, each with a 45° curve.
- How is device size selected?
- Per the published sizing guidelines, a 25 mm device is suggested for a simple PFO or PFO with a non-prominent ASA; a 30 or 35 mm device for complex PFO with characteristics such as an atrial septal aneurysm with a long tunnel or thickened septum secundum; and an 18 mm device for PFO with small anatomy (septal primum length < 20 mm).
- What should be checked before device detachment?
- Abbott advises evaluating the position of the device after deployment but before detachment, using echocardiography to ensure the device does not impinge on the free atrial wall or aortic root. If the device interferes with an adjacent structure, it should be recaptured and redeployed, or replaced with a smaller device.
