Amplatzer™ VSD OccludersProduct Code (REF): 9-VSD-MUSC-004
Ventricular septal defects are the most commonly found congenital heart defect. There are four types of VSDs: muscular, perimembranous, conal or subpulmonary, and inlet. Abbott offers Amplatzer Muscular and Membranous VSD Occluders for complete closure of muscular and perimembranous VSDs. The device waist centers and closes the defect, a symmetrical design allows a transcatheter femoral or arterial delivery approach, and the device is constructed from self-expanding Nitinol mesh and polyester material, which promotes tissue in-growth. The Amplatzer™ Muscular VSD Occluder is intended for the closure of congenital ventricular septal defects in high-risk surgical patients; its 7 mm waist length is designed to accommodate the thickness of the muscular ventricular septal wall. The Amplatzer™ P.I. Muscular VSD Occluder is intended for the closure of post-myocardial-infarction (P.I.) VSD, with a 10 mm waist length designed to accommodate the damaged muscular tissue of the septal wall following a myocardial infarction. The Amplatzer™ Membranous VSD Occluder is intended for the closure of hemodynamically significant perimembranous VSDs; its non-concentric design enables placement without interfering with the aortic or atrioventricular valves. All Amplatzer Muscular and Membranous Occluders are self-expandable, double-disc devices whose two discs are linked by a connecting waist corresponding to the size of the VSD, providing optimal occlusion. These percutaneous, transcatheter devices can be recaptured and redeployed for precise placement.
Available under product codes 9-VSD-MUSC-004, 9-VSD-MUSC-006, 9-VSD-MUSC-008, 9-VSD-MUSC-010, 9-VSD-MUSC-012, 9-VSD-MUSC-014, 9-VSD-MUSC-016, 9-VSD-MUSC-018 and 20 more (see Ordering Information below).
Sizes & Specifications
- Indication
- Muscular & perimembranous VSD closure
- Construction
- Self-expanding nitinol mesh and polyester material
- Muscular waist length
- 7 mm
- P.I. Muscular waist length
- 10 mm
Manufacturer: Abbott Laboratories · Reference source: cardiovascular.abbott
Design & Technology
Technical characteristics and diagrams as published by Abbott.

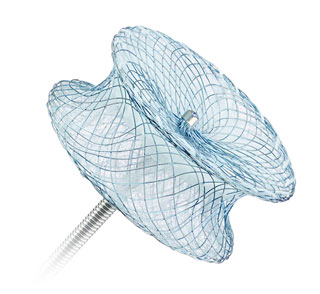

Amplatzer™ Muscular VSD Occluder
The Amplatzer™ Muscular VSD Occluder is intended for the closure of congenital ventricular septal defects in high-risk surgical patients. The 7 mm waist length is designed to accommodate the thickness of the muscular ventricular septal wall.

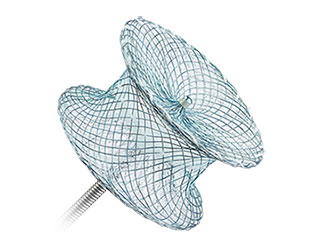

Amplatzer™ P.I. Muscular VSD Occluder
The Amplatzer™ P.I. Muscular VSD Occluder is intended for the closure of post-myocardial-infarction (P.I.) VSD. The 10 mm waist length is designed to accommodate the damaged muscular tissue of the septal wall following a myocardial infarction.
Product Identification & Specifications
Reference identifiers for procurement, registration and tender documentation.
| Product Code | 9-VSD-MUSC-004 |
|---|---|
| REF Numbers | 9-VSD-MUSC-004, 9-VSD-MUSC-006, 9-VSD-MUSC-008, 9-VSD-MUSC-010, 9-VSD-MUSC-012, 9-VSD-MUSC-014, 9-VSD-MUSC-016, 9-VSD-MUSC-018, 9-VSDMUSCPI-016, 9-VSDMUSCPI-018, 9-VSDMUSCPI-020, 9-VSDMUSCPI-022, 9-VSDMUSCPI-024, 9-VSD-MEMB-004, 9-VSD-MEMB-005, 9-VSD-MEMB-006, 9-VSD-MEMB-007, 9-VSD-MEMB-008, 9-VSD-MEMB-009, 9-VSD-MEMB-010, 9-VSD-MEMB-011, 9-VSD-MEMB-012, 9-VSD-MEMB-013, 9-VSD-MEMB-014, 9-VSD-MEMB-015, 9-VSD-MEMB-016, 9-VSD-MEMB-017, 9-VSD-MEMB-018 |
| Manufacturer | Abbott Laboratories |
| Brand | Abbott |
| Product Family | Structural Interventions |
| Country Availability | Tajikistan, Afghanistan |
Clinical Applications
The Amplatzer™ VSD Occluders is a transcatheter vsd closure device family in the Structural Interventions family from Abbott Laboratories, used by interventional specialists in procedures where a transcatheter vsd closure device family of this class is indicated. It is supplied in 28 configurations (catalog codes 9-VSD-MUSC-004 through 9-VSD-MEMB-018) to match anatomical and procedural requirements.
For the complete indications for use, contraindications and instructions for use (IFU), request the official Abbott documentation through our clinical team. Modern Medical Solutions supplies the Amplatzer™ VSD Occluders to hospitals and cath labs across Tajikistan and Afghanistan.
Ordering Information
Catalog reference codes as published by Abbott. Contact us to confirm current availability.
Amplatzer™ Muscular VSD Occluder
| Model/Reorder Number | Device Size/Waist Diameter (mm) | Disc Diameter (mm) | Waist Length (mm) |
|---|---|---|---|
| 9-VSD-MUSC-004 | 4 | 9 | 7 |
| 9-VSD-MUSC-006 | 6 | 14 | 7 |
| 9-VSD-MUSC-008 | 8 | 16 | 7 |
| 9-VSD-MUSC-010 | 10 | 18 | 7 |
| 9-VSD-MUSC-012 | 12 | 20 | 7 |
| 9-VSD-MUSC-014 | 14 | 22 | 7 |
| 9-VSD-MUSC-016 | 16 | 24 | 7 |
| 9-VSD-MUSC-018 | 18 | 26 | 7 |
Amplatzer™ P.I. Muscular VSD Occluder
| Model/Reorder Number | Device Size/Waist Diameter (mm) | Disc Diameter (mm) | Waist Length (mm) |
|---|---|---|---|
| 9-VSDMUSCPI-016 | 16 | 26 | 10 |
| 9-VSDMUSCPI-018 | 18 | 28 | 10 |
| 9-VSDMUSCPI-020 | 20 | 30 | 10 |
| 9-VSDMUSCPI-022 | 22 | 32 | 10 |
| 9-VSDMUSCPI-024 | 24 | 34 | 10 |
Amplatzer™ Membranous VSD Occluder
| Model/Reorder Number | Device Size/Waist Diameter (mm) | Right Ventricular Disc Diameter (mm) | Left Ventricular Disc Diameter (mm) |
|---|---|---|---|
| 9-VSD-MEMB-004 | 4 | 8 | 10 |
| 9-VSD-MEMB-005 | 5 | 9 | 11 |
| 9-VSD-MEMB-006 | 6 | 10 | 12 |
| 9-VSD-MEMB-007 | 7 | 11 | 13 |
| 9-VSD-MEMB-008 | 8 | 12 | 14 |
| 9-VSD-MEMB-009 | 9 | 13 | 15 |
| 9-VSD-MEMB-010 | 10 | 14 | 16 |
| 9-VSD-MEMB-011 | 11 | 15 | 17 |
| 9-VSD-MEMB-012 | 12 | 16 | 18 |
| 9-VSD-MEMB-013 | 13 | 17 | 19 |
| 9-VSD-MEMB-014 | 14 | 18 | 20 |
| 9-VSD-MEMB-015 | 15 | 19 | 21 |
| 9-VSD-MEMB-016 | 16 | 20 | 22 |
| 9-VSD-MEMB-017 | 17 | 21 | 23 |
| 9-VSD-MEMB-018 | 18 | 22 | 24 |
Model/Reorder numbers and dimensions per the official Abbott Amplatzer™ VSD Occluders product page ordering information.
Downloads & Documentation
Instructions for use (IFU), technical datasheets and clinical literature for the Amplatzer™ VSD Occluders are available on request from our clinical team.
Request DocumentationFrequently Asked Questions
- Which VSD types do Amplatzer™ VSD Occluders address?
- Abbott offers Amplatzer Muscular and Membranous VSD Occluders for complete closure of muscular and perimembranous VSDs. Ventricular septal defects are the most commonly found congenital heart defect, and the four types are muscular, perimembranous, conal or subpulmonary, and inlet.
- What is the difference between the Muscular and P.I. Muscular occluders?
- The Amplatzer™ Muscular VSD Occluder has a 7 mm waist length designed to accommodate the thickness of the muscular ventricular septal wall and is intended for congenital VSDs in high-risk surgical patients. The Amplatzer™ P.I. Muscular VSD Occluder has a 10 mm waist length designed to accommodate the damaged muscular tissue following a myocardial infarction and is intended for post-infarct VSD.
- How does the Membranous VSD Occluder avoid the adjacent valves?
- The Amplatzer™ Membranous VSD Occluder is intended for closure of hemodynamically significant perimembranous VSDs. Its non-concentric design enables placement without interfering with the aortic or atrioventricular valves.
- Can Amplatzer™ VSD Occluders be repositioned during the procedure?
- Yes. These percutaneous, transcatheter, self-expandable double-disc devices can be recaptured and redeployed for precise placement. Their two discs are linked by a connecting waist corresponding to the size of the VSD, and the nitinol mesh and polyester construction promotes tissue in-growth.
