Masters Series Mechanical Heart ValveProduct Code (REF): 15AHPJ-505
The Masters Series mechanical heart valves are rotatable, bileaflet valves designed for implantation in the aortic or mitral position. Abbott minimizes valve bulk with the sleek Pivot Guard design paired with sewing cuff options that maximize implantability without extraneous material. The Masters Series was designed with low thrombogenicity at the forefront: minimized carbon surface area can lessen thrombus formation, large internal diameters up to 26.1 mm promote low pressure gradients — which can help minimize shear stress and thrombogenicity — and uniform velocities within the hinge recesses help aid washout of blood elements. The Masters HP series brings hemodynamics and implantability together in both the aortic and mitral position, and is now available also for babies and newborns. The 15 mm Masters HP Mitral and Aortic Valve is the world's smallest mechanical heart valve, making it possible to treat the tiniest patients, including newborns and babies. The Masters Series offers a broad range of cuff options — HP standard and expanded cuffs, polyester standard and expanded cuffs, and PTFE cuffs — to tailor implantation to every patient across both the aortic and mitral positions.
Available under product codes 15AHPJ-505, 17AHPJ-505, 17AEHPJ-505, 19AHPJ-505, 19AEHPJ-505, 19AJ-501, 19AECJ-502, 19ATJ-503 and 67 more (see Ordering Information below).
Sizes & Specifications
- Valve type
- Aortic and mitral bileaflet mechanical valves
- Positions
- Aortic and mitral
- Smallest size
- 15 mm (Masters HP)
- Internal diameter
- up to 26.1 mm
Manufacturer: Abbott Laboratories · Reference source: cardiovascular.abbott
Design & Technology
Technical characteristics and diagrams as published by Abbott.

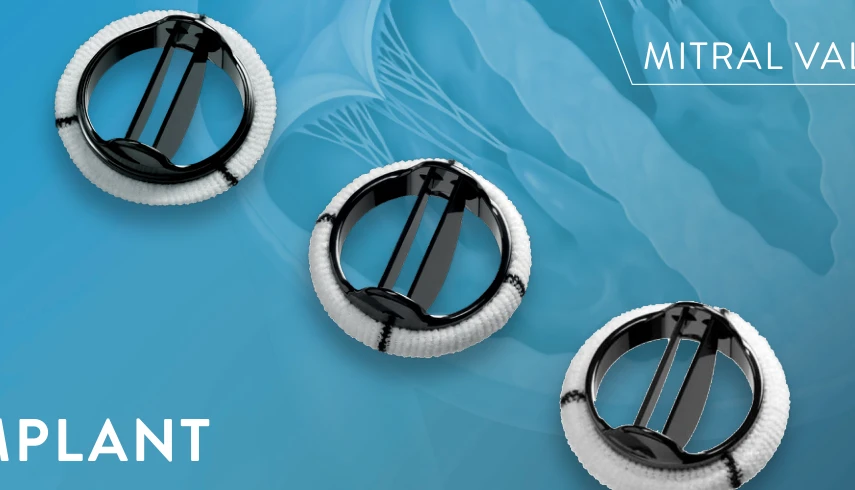

The Regent™, Masters HP and Masters family
Product Identification & Specifications
Reference identifiers for procurement, registration and tender documentation.
| Product Code | 15AHPJ-505 |
|---|---|
| REF Numbers | 15AHPJ-505, 17AHPJ-505, 17AEHPJ-505, 19AHPJ-505, 19AEHPJ-505, 19AJ-501, 19AECJ-502, 19ATJ-503, 21AHPJ-505, 21AEHPJ-505, 21AJ-501, 21AECJ-502, 21ATJ-503, 23AHPJ-505, 23AEHPJ-505, 23AJ-501, 23AECJ-502, 23ATJ-503, 25AHPJ-505, 25AEHPJ-505, 25AJ-501, 25AECJ-502, 25ATJ-503, 27AHPJ-505, 27AEHPJ-505, 27AJ-501, 27AECJ-502, 27ATJ-503, 29AJ-501, 29AECJ-502, 29ATJ-503, 31AJ-501, 31AECJ-502, 31ATJ-503, 15MHPJ-505, 17MHPJ-505, 19MHPJ-505, 19MJ-501, 19MECJ-502, 19MTJ-503, 19METJ-504, 21MHPJ-505, 21MJ-501, 21MECJ-502, 21MTJ-503, 21METJ-504, 23MHPJ-505, 23MJ-501, 23MECJ-502, 23MTJ-503, 23METJ-504, 25MHPJ-505, 25MJ-501, 25MECJ-502, 25MTJ-503, 25METJ-504, 27MHPJ-505, 27MJ-501, 27MECJ-502, 27MTJ-503, 27METJ-504, 29MJ-501, 29MECJ-502, 29MTJ-503, 29METJ-504, 31MJ-501, 31MECJ-502, 31MTJ-503, 31METJ-504, 33MJ-501, 33MECJ-502, 33MTJ-503, 33METJ-504, 35MJ-501, 37MJ-501 |
| Manufacturer | Abbott Laboratories |
| Brand | Abbott |
| Product Family | Surgical Valve Solutions |
| Country Availability | Tajikistan, Afghanistan |
Clinical Applications
The Masters Series Mechanical Heart Valve is a aortic and mitral bileaflet mechanical heart valves in the Surgical Valve Solutions family from Abbott Laboratories, used by interventional specialists in procedures where a aortic and mitral bileaflet mechanical heart valves of this class is indicated. It is supplied in 75 configurations (catalog codes 15AHPJ-505 through 37MJ-501) to match anatomical and procedural requirements.
For the complete indications for use, contraindications and instructions for use (IFU), request the official Abbott documentation through our clinical team. Modern Medical Solutions supplies the Masters Series Mechanical Heart Valve to hospitals and cath labs across Tajikistan and Afghanistan.
Ordering Information
Catalog reference codes as published by Abbott. Contact us to confirm current availability.
| Position | Size (mm) | Masters HP Standard Cuff Catalog No. | Masters HP Expanded Cuff Catalog No. | Masters Polyester Standard Cuff Catalog No. | Masters Polyester Expanded Cuff Catalog No. | Masters PTFE Cuff Catalog No. | Masters Expanded PTFE Cuff Catalog No. |
|---|---|---|---|---|---|---|---|
| Aortic | 15 | 15AHPJ-505 | — | — | — | — | — |
| Aortic | 17 | 17AHPJ-505 | 17AEHPJ-505 | — | — | — | — |
| Aortic | 19 | 19AHPJ-505 | 19AEHPJ-505 | 19AJ-501 | 19AECJ-502 | 19ATJ-503 | — |
| Aortic | 21 | 21AHPJ-505 | 21AEHPJ-505 | 21AJ-501 | 21AECJ-502 | 21ATJ-503 | — |
| Aortic | 23 | 23AHPJ-505 | 23AEHPJ-505 | 23AJ-501 | 23AECJ-502 | 23ATJ-503 | — |
| Aortic | 25 | 25AHPJ-505 | 25AEHPJ-505 | 25AJ-501 | 25AECJ-502 | 25ATJ-503 | — |
| Aortic | 27 | 27AHPJ-505 | 27AEHPJ-505 | 27AJ-501 | 27AECJ-502 | 27ATJ-503 | — |
| Aortic | 29 | — | — | 29AJ-501 | 29AECJ-502 | 29ATJ-503 | — |
| Aortic | 31 | — | — | 31AJ-501 | 31AECJ-502 | 31ATJ-503 | — |
| Mitral | 15 | 15MHPJ-505 | — | — | — | — | — |
| Mitral | 17 | 17MHPJ-505 | — | — | — | — | — |
| Mitral | 19 | 19MHPJ-505 | — | 19MJ-501 | 19MECJ-502 | 19MTJ-503 | 19METJ-504 |
| Mitral | 21 | 21MHPJ-505 | — | 21MJ-501 | 21MECJ-502 | 21MTJ-503 | 21METJ-504 |
| Mitral | 23 | 23MHPJ-505 | — | 23MJ-501 | 23MECJ-502 | 23MTJ-503 | 23METJ-504 |
| Mitral | 25 | 25MHPJ-505 | — | 25MJ-501 | 25MECJ-502 | 25MTJ-503 | 25METJ-504 |
| Mitral | 27 | 27MHPJ-505 | — | 27MJ-501 | 27MECJ-502 | 27MTJ-503 | 27METJ-504 |
| Mitral | 29 | — | — | 29MJ-501 | 29MECJ-502 | 29MTJ-503 | 29METJ-504 |
| Mitral | 31 | — | — | 31MJ-501 | 31MECJ-502 | 31MTJ-503 | 31METJ-504 |
| Mitral | 33 | — | — | 33MJ-501 | 33MECJ-502 | 33MTJ-503 | 33METJ-504 |
| Mitral | 35 | — | — | 35MJ-501 | — | — | — |
| Mitral | 37 | — | — | 37MJ-501 | — | — | — |
Catalog numbers from the Valve Ordering Guide in Abbott's official mechanical heart valve EMEA brochure, cross-referenced with Masters Series product information. Confirm current availability with our team.
Downloads & Documentation
Instructions for use (IFU), technical datasheets and clinical literature for the Masters Series Mechanical Heart Valve are available on request from our clinical team.
Request DocumentationFrequently Asked Questions
- What is the Masters Series Mechanical Heart Valve?
- The Masters Series mechanical heart valves are rotatable, bileaflet valves designed for implantation in the aortic or mitral position. Abbott minimizes valve bulk with the sleek Pivot Guard design paired with sewing-cuff options that maximize implantability without extraneous material.
- What is the 15 mm Masters HP valve?
- The 15 mm Masters HP Mitral and Aortic Valve is the world's smallest mechanical heart valve. It makes it possible to treat the tiniest patients, including newborns and babies, and is available as models 15AHPJ-505 (aortic) and 15MHPJ-505 (mitral).
- How was the Masters Series designed to reduce thrombogenicity?
- The Masters Series was designed with low thrombogenicity at the forefront: minimized carbon surface area can lessen thrombus formation, large internal diameters up to 26.1 mm promote low pressure gradients that can help minimize shear stress and thrombogenicity, and uniform velocities within the hinge recesses help aid washout of blood elements.
- What cuff options are available in the Masters Series?
- The Masters Series offers a broad range of cuff options to tailor implantation to every patient — including HP standard and expanded cuffs (xxAHPJ-505 / xxAEHPJ-505 aortic, xxMHPJ-505 mitral), polyester standard and expanded cuffs (xxAJ-501 / xxAECJ-502 aortic, xxMJ-501 / xxMECJ-502 mitral), and PTFE cuffs (xxATJ-503 aortic, xxMTJ-503 mitral, xxMETJ-504 expanded PTFE mitral).
