Navitor™ (TAVI system)Product Code (REF): NVRO-23
The Navitor™ TAVI System is Abbott's platform for transcatheter aortic valve implantation (TAVI), also referred to as TAVR (transcatheter aortic valve replacement). It is designed to combine stable delivery, remarkable performance and a future-ready index valve. Stable delivery is supported by controlled deployment and three large, highly visible radiopaque markers, with the largest valve on the smallest delivery system to date. Reported performance from 30-day echo core lab data includes 0% moderate-to-severe PVL, a 2.0 cm² effective orifice area and a 7.4 mmHg mean gradient, alongside 1.9% all-cause mortality, 1.9% disabling stroke, 3.8% life-threatening bleeding, 1.9% acute kidney injury stage 2/3 and 4.2% major vascular complications. The design is also positioned as future ready, offering uncompromised coronary access and a future-ready index valve. The Navitor™ transcatheter aortic valve is supplied in five sizes — 23, 25, 27, 29 and 35 mm (NVRO-23 through NVRO-35) — spanning an annulus use range from 19 mm to 30 mm in diameter. Valve preparation and loading onto the FlexNav™ delivery system are facilitated by the Navitor™ loading system, which includes a loading funnel, loading base, base insert, loading tube, stent guide and leaflet tester, with the SM and LG+ configurations color-coded to differentiate sizes.
Available under product codes NVRO-23, NVRO-25, NVRO-27, NVRO-29, NVRO-35.
Sizes & Specifications
- Valve sizes
- 23, 25, 27, 29, 35 mm
- Annulus use range diameter
- 19–30 mm
- Delivery system
- FlexNav™ (14 F / 15 F equivalent integrated sheath)
- Effective orifice area
- 2.0 cm² (30-day echo core lab)
- Mean gradient
- 7.4 mmHg (30-day echo core lab)
Manufacturer: Abbott Laboratories · Reference source: cardiovascular.abbott
Design & Technology
Technical characteristics and diagrams as published by Abbott.

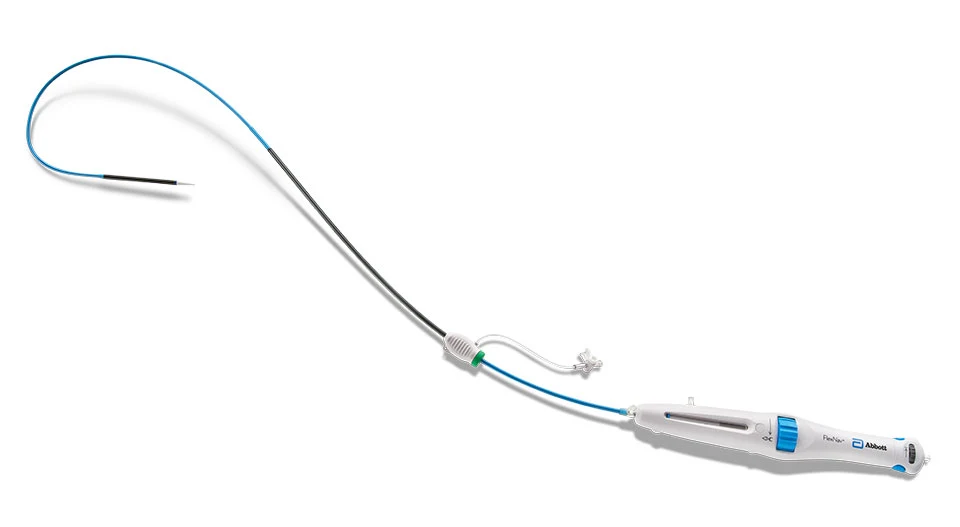

FlexNav™ Delivery System
Product Identification & Specifications
Reference identifiers for procurement, registration and tender documentation.
| Product Code | NVRO-23 |
|---|---|
| REF Numbers | NVRO-23, NVRO-25, NVRO-27, NVRO-29, NVRO-35 |
| Manufacturer | Abbott Laboratories |
| Brand | Abbott |
| Product Family | Transcatheter Valve Solutions |
| Country Availability | Tajikistan, Afghanistan |
Clinical Applications
The Navitor™ (TAVI system) is a self-expanding transcatheter aortic valve implantation (tavi) system in the Transcatheter Valve Solutions family from Abbott Laboratories, used by interventional specialists in procedures where a self-expanding transcatheter aortic valve implantation (tavi) system of this class is indicated. It is supplied in 5 configurations (catalog codes NVRO-23 through NVRO-35) to match anatomical and procedural requirements.
For the complete indications for use, contraindications and instructions for use (IFU), request the official Abbott documentation through our clinical team. Modern Medical Solutions supplies the Navitor™ (TAVI system) to hospitals and cath labs across Tajikistan and Afghanistan.
Ordering Information
Catalog reference codes as published by Abbott. Contact us to confirm current availability.
| Catalog Number | Valve Size (mm) | Annulus Use Range Diameter (mm) | Annulus Area (mm²) | Annulus Perimeter (mm) |
|---|---|---|---|---|
| NVRO-23 | 23 | 19–21 | 277–346 | 60–66 |
| NVRO-25 | 25 | 21–23 | 338–415 | 66–73 |
| NVRO-27 | 27 | 23–25 | 405–491 | 72–79 |
| NVRO-29 | 29 | 25–27 | 479–573 | 79–85 |
| NVRO-35 | 35 | 27–30 | 559–707 | 85–95 |
Catalog numbers transcribed from the Abbott Navitor™ TAVI System Ordering Information section: Navitor™ transcatheter aortic valve, FlexNav™ delivery system and Navitor™ loading system. Dimensional values per the Navitor™ TAVI System IFU.
Downloads & Documentation
Instructions for use (IFU), technical datasheets and clinical literature for the Navitor™ (TAVI system) are available on request from our clinical team.
Request DocumentationFrequently Asked Questions
- What valve sizes does the Navitor™ TAVI System offer?
- The Navitor™ transcatheter aortic valve is available in five sizes — 23, 25, 27, 29 and 35 mm (catalog numbers NVRO-23, NVRO-25, NVRO-27, NVRO-29 and NVRO-35) — covering an annulus use range diameter from 19 mm to 30 mm.
- What delivery system is used with the Navitor™ valve?
- The Navitor™ valve is delivered via the FlexNav™ delivery system, offered in SM (FNAV-DS-SM, 14 F equivalent integrated sheath) and LG (FNAV-DS-LG, 15 F equivalent integrated sheath) configurations. Both have a 30 cm integrated sheath working length and a 107 cm delivery system working length.
- What are the reported clinical performance results?
- Reported 30-day echo core lab data include 0% moderate-to-severe PVL, a 2.0 cm² effective orifice area and a 7.4 mmHg mean gradient, together with 1.9% all-cause mortality, 1.9% disabling stroke, 3.8% life-threatening bleeding, 1.9% acute kidney injury stage 2/3 and 4.2% major vascular complications.
- How is the Navitor™ valve prepared for implantation?
- Valve preparation and loading onto the FlexNav™ delivery system are facilitated by the Navitor™ loading system (NVTR-LS-SM and NVTR-LS-LG+), which includes a loading funnel, loading base, base insert, loading tube, stent guide and leaflet tester. The base insert and loading tube are color-coded to differentiate between configurations.
