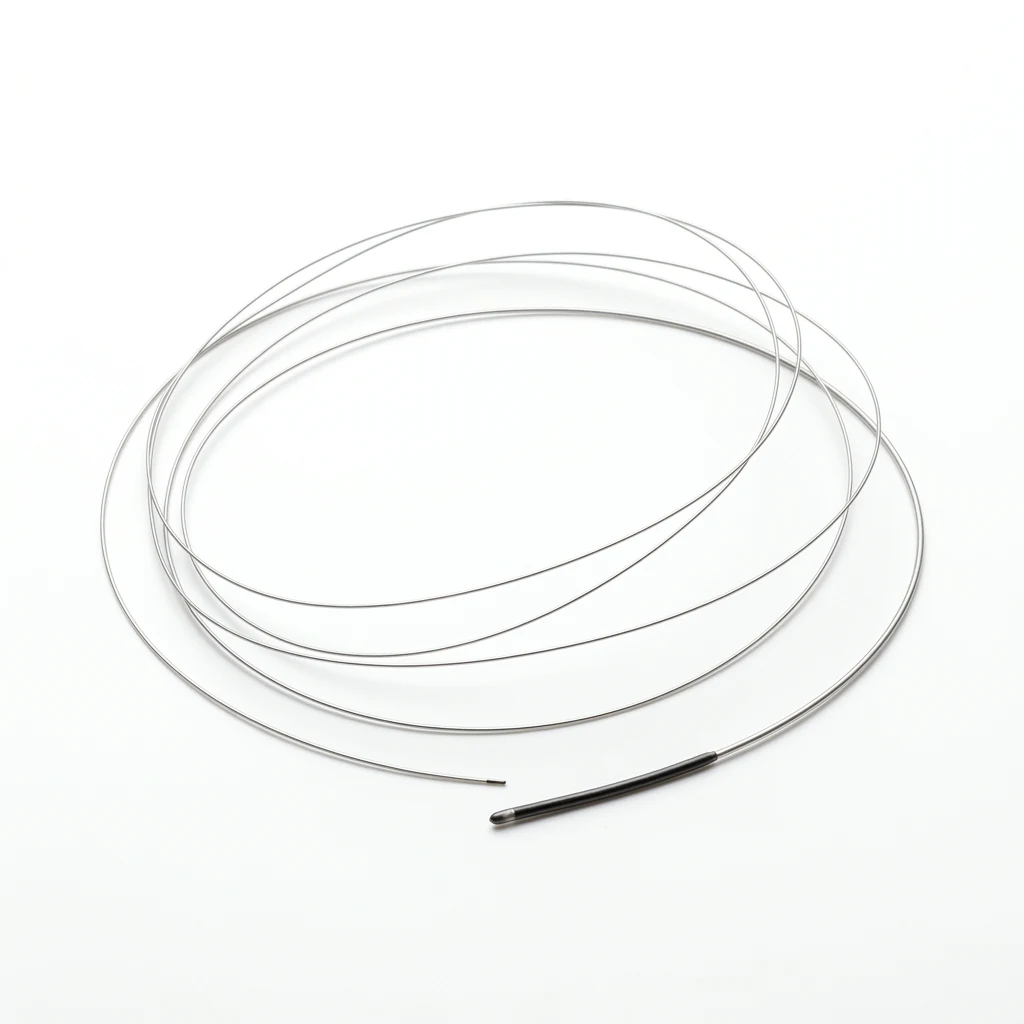

ASAHI CHIKAI® 008Product Code (REF): WAIN-CKI-008-200
ASAHI CHIKAI® 008 is the ultra-low-profile member of the CHIKAI neurovascular family: an 0.008 in workhorse guidewire for procedures that demand the smallest possible wire platform, such as distal navigation with the lowest-profile flow-directed and detachable-coil microcatheters. The shaft tapers from 0.26 mm (0.010 in) proximally to a 0.20 mm (0.008 in) distal segment, combining measurable support and torque response with a profile that follows tortuous distal neurovascular anatomy. A 9 cm distal coil with 9 cm of radiopacity keeps the straight tip visible during manipulation, and hydrophilic coating over 180 cm of the 200 cm usable length maintains smooth motion inside the microcatheter throughout the procedure.
Available under product code WAIN-CKI-008-200.
Sizes & Specifications
- Diameter
- 0.008 / 0.010 in (0.20 / 0.26 mm)
- Usable length
- 200 cm
- Tip shape
- Straight
- Coating
- Hydrophilic (180 cm)
Manufacturer: Asahi Intecc Co., Ltd. · Reference source: medical.asahi-intecc.com
Design & Technology
Technical characteristics and diagrams as published by Asahi Intecc.

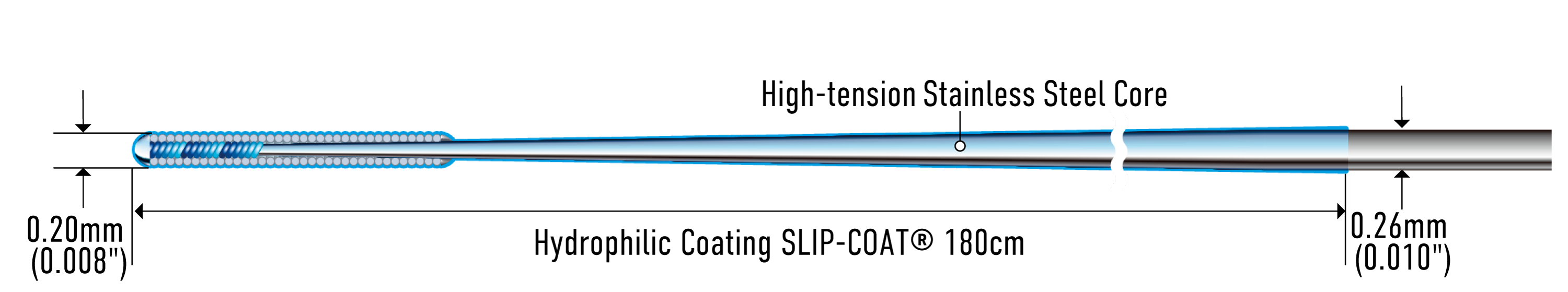

Structure
Product Identification & Specifications
Reference identifiers for procurement, registration and tender documentation.
| Product Code | WAIN-CKI-008-200 |
|---|---|
| REF Number | WAIN-CKI-008-200 |
| Manufacturer | Asahi Intecc Co., Ltd. |
| Brand | Asahi Intecc |
| Product Family | Neurovascular Guidewires |
| Country Availability | Tajikistan, Afghanistan |
Clinical Applications
The ASAHI CHIKAI® 008 is a neurovascular guidewire — 0.008 in in the Neurovascular Guidewires family from Asahi Intecc Co., Ltd., used by interventional specialists in procedures where a neurovascular guidewire — 0.008 in of this class is indicated. It is supplied under catalog code WAIN-CKI-008-200.
For the complete indications for use, contraindications and instructions for use (IFU), request the official Asahi Intecc documentation through our clinical team. Modern Medical Solutions supplies the ASAHI CHIKAI® 008 to hospitals and cath labs across Tajikistan and Afghanistan.
Ordering Information
Catalog reference codes as published by Asahi Intecc. Contact us to confirm current availability.
| Product Name | Catalog No. | Usable Length | Outer Diameter | Coil Length | Radiopaque Length | Tip Shape | Hydrophilic Coating Length |
|---|---|---|---|---|---|---|---|
| ASAHI CHIKAI 008 | WAIN-CKI-008-200 | 200cm | 0.20/0.26mm (0.008/0.010") | 9cm | 9cm | Straight | 180cm |
Downloads & Documentation
Instructions for use (IFU), technical datasheets and clinical literature for the ASAHI CHIKAI® 008 are available on request from our clinical team.
Request DocumentationFrequently Asked Questions
- What is the ASAHI CHIKAI® 008 used for?
- The ASAHI CHIKAI® 008 is a neurovascular guidewire — 0.008 in manufactured by Asahi Intecc, used by interventional physicians for precision vascular access procedures. Contact our clinical team for the full indications for use and instructions for use (IFU).
- What sizes does the ASAHI CHIKAI® 008 come in?
- The ASAHI CHIKAI® 008 is available in the following configurations: Diameter 0.008 / 0.010 in (0.20 / 0.26 mm), Usable length 200 cm, Tip shape Straight, Coating Hydrophilic (180 cm).
- How can I order the ASAHI CHIKAI® 008?
- Modern Medical Solutions is the authorized Asahi Intecc distributor for Tajikistan and Afghanistan. Submit a documentation or ordering request through our contact form and our clinical team will confirm availability and lead time.
