ASAHI CHIKAI® black/14 soft tipProduct Code (REF): WAIN-CKI-200-BS
ASAHI CHIKAI® black/14 soft tip is the 0.014 in polymer-jacketed member of the CHIKAI neurovascular family, providing excellent support and less friction for smooth microcatheter delivery. The polymer jacket (150 cm) with hydrophilic coating reduces resistance against the microcatheter lumen and vessel wall, while ACT ONE construction delivers precise torque response through tortuous cerebral anatomy. The soft-tip version maximises flexibility of the tip and distal shaft — an atraumatic design that lowers frictional resistance from the vessel wall for safety and better torque response, with 43% more tip flexibility than the conventional CHIKAI black 14. Offered in straight, angled and soft-tip catalog configurations, each 200 cm usable length with a round-curve tip.
Available under product codes WAIN-CKI-200-BS, WAIN-CKI-200-BA, AIN-CKI-200-B-SFT.
Sizes & Specifications
- Diameter
- 0.014 in (0.36 mm)
- Usable length
- 200 cm
- Tip shape
- Round curve
- Polymer jacket
- 150 cm
Manufacturer: Asahi Intecc Co., Ltd. · Reference source: medical.asahi-intecc.com
Design & Technology
Technical characteristics and diagrams as published by Asahi Intecc.
Great torque response
ACT ONE provides great torque response in tortuous anatomy
Tip flexibility
Maximizes the flexibility of tip and distal shaft. This atraumatic shaft design reduces the frictional resistance from the vessel wall for safety and better torque response.

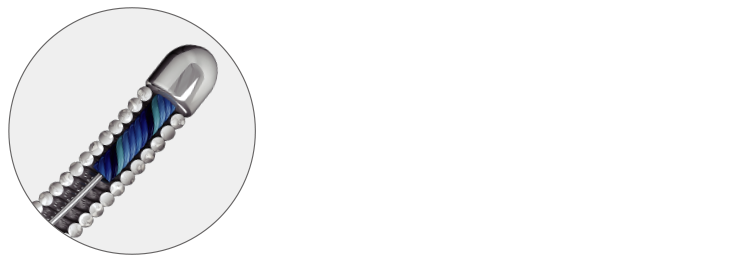

43% Softer Tip
CHIKAI black 14 soft tip has 43% more flexibility at the tip than the conventional CHIKAI black 14.

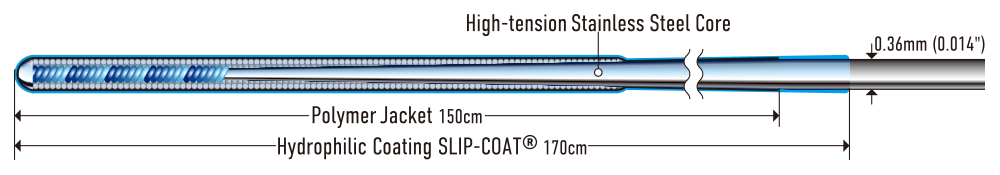

Structure
Product Identification & Specifications
Reference identifiers for procurement, registration and tender documentation.
| Product Code | WAIN-CKI-200-BS |
|---|---|
| REF Numbers | WAIN-CKI-200-BS, WAIN-CKI-200-BA, AIN-CKI-200-B-SFT |
| Manufacturer | Asahi Intecc Co., Ltd. |
| Brand | Asahi Intecc |
| Product Family | Neurovascular Guidewires |
| Country Availability | Tajikistan, Afghanistan |
Clinical Applications
The ASAHI CHIKAI® black/14 soft tip is a polymer-jacketed neurovascular guidewire — 0.014 in in the Neurovascular Guidewires family from Asahi Intecc Co., Ltd., used by interventional specialists in procedures where a polymer-jacketed neurovascular guidewire — 0.014 in of this class is indicated. It is supplied in 3 configurations (catalog codes WAIN-CKI-200-BS through AIN-CKI-200-B-SFT) to match anatomical and procedural requirements.
For the complete indications for use, contraindications and instructions for use (IFU), request the official Asahi Intecc documentation through our clinical team. Modern Medical Solutions supplies the ASAHI CHIKAI® black/14 soft tip to hospitals and cath labs across Tajikistan and Afghanistan.
Ordering Information
Catalog reference codes as published by Asahi Intecc. Contact us to confirm current availability.
| Product Name | Catalog No. | Usable Length | Outer Diameter | Coil Length | Radiopaque Length | Tip Shape | Polymer Jacket Length | Hydrophilic Coating Length |
|---|---|---|---|---|---|---|---|---|
| ASAHI CHIKAI black | WAIN-CKI-200-BS | 200cm | 0.36mm (0.014") | 30cm | 3cm | Round curve | 150cm | 170cm |
| ASAHI CHIKAI black | WAIN-CKI-200-BA | 200cm | 0.36mm (0.014") | 30cm | 3cm | Angled 90° | 150cm | 170cm |
| ASAHI CHIKAI black 14 Soft tip | AIN-CKI-200-B-SFT | 200cm | 0.36mm (0.014") | 30cm | 3cm | Round curve | 150cm | 170cm |
Downloads & Documentation
Instructions for use (IFU), technical datasheets and clinical literature for the ASAHI CHIKAI® black/14 soft tip are available on request from our clinical team.
Request DocumentationFrequently Asked Questions
- What is the ASAHI CHIKAI® black/14 soft tip used for?
- The ASAHI CHIKAI® black/14 soft tip is a polymer-jacketed neurovascular guidewire — 0.014 in manufactured by Asahi Intecc, used by interventional physicians for precision vascular access procedures. Contact our clinical team for the full indications for use and instructions for use (IFU).
- What sizes does the ASAHI CHIKAI® black/14 soft tip come in?
- The ASAHI CHIKAI® black/14 soft tip is available in the following configurations: Diameter 0.014 in (0.36 mm), Usable length 200 cm, Tip shape Round curve, Polymer jacket 150 cm.
- How can I order the ASAHI CHIKAI® black/14 soft tip?
- Modern Medical Solutions is the authorized Asahi Intecc distributor for Tajikistan and Afghanistan. Submit a documentation or ordering request through our contact form and our clinical team will confirm availability and lead time.
