Amplatzer™ Amulet™ LAA OccluderProduct Code (REF): 9-ACP2-007-016
Current evidence suggests that percutaneous occlusion of the left atrial appendage (LAA) reduces the risk of thromboembolic complications associated with non-valvular atrial fibrillation. The Amplatzer™ Amulet™ LAA Occluder is designed for complete occlusion of the LAA, thereby reducing the risk for ischemic stroke caused by atrial fibrillation. Since LAA anatomies come in all shapes and sizes, the Amulet features a broad size range of occluders. The device is engineered for optimal LAA occlusion with full cross-sectional orifice coverage, flexible braided nitinol mesh construction, and controlled, precise deployment. It provides a complete seal with the ability to conform to the inner wall of the LAA, and it can be recaptured and repositioned if needed. Landing zone sizes span 11 to 31 mm in diameter. Proximal device positioning allows for proper placement regardless of the distal anatomy or the existence of multiple distal lobes. Each device is supplied with a 145 cm delivery cable, a plastic vise for the delivery cable, a hemostasis valve, a loader, loading cable and plastic vise for the loading cable, and a sheath adaptor (16–25 mm devices only).
Available under product codes 9-ACP2-007-016, 9-ACP2-007-018, 9-ACP2-007-020, 9-ACP2-007-022, 9-ACP2-010-025, 9-ACP2-010-028, 9-ACP2-010-031, 9-ACP2-010-034.
Sizes & Specifications
- Indication
- Left atrial appendage (LAA) occlusion
- Landing size zones
- 11 to 31 mm in diameter
- Device sizes
- 16, 18, 20, 22, 25, 28, 31, 34 mm (lobe diameter)
- Minimum sheath size
- 12 F or 14 F
Manufacturer: Abbott Laboratories · Reference source: cardiovascular.abbott
Design & Technology
Technical characteristics and diagrams as published by Abbott.

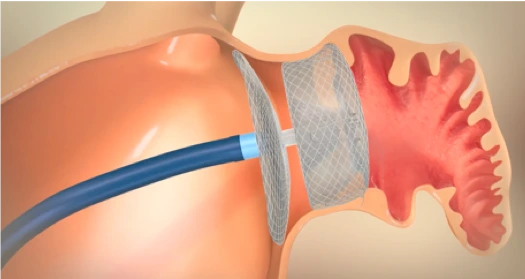

Placement in the left atrial appendage
Proximal device positioning allows for proper placement regardless of distal anatomy or the existence of multiple distal lobes, providing a complete seal with the ability to conform to the inner wall of the LAA.
Product Identification & Specifications
Reference identifiers for procurement, registration and tender documentation.
| Product Code | 9-ACP2-007-016 |
|---|---|
| REF Numbers | 9-ACP2-007-016, 9-ACP2-007-018, 9-ACP2-007-020, 9-ACP2-007-022, 9-ACP2-010-025, 9-ACP2-010-028, 9-ACP2-010-031, 9-ACP2-010-034 |
| Manufacturer | Abbott Laboratories |
| Brand | Abbott |
| Product Family | Structural Interventions |
| Country Availability | Tajikistan, Afghanistan |
Clinical Applications
The Amplatzer™ Amulet™ LAA Occluder is a transcatheter left atrial appendage occluder in the Structural Interventions family from Abbott Laboratories, used by interventional specialists in procedures where a transcatheter left atrial appendage occluder of this class is indicated. It is supplied in 8 configurations (catalog codes 9-ACP2-007-016 through 9-ACP2-010-034) to match anatomical and procedural requirements.
For the complete indications for use, contraindications and instructions for use (IFU), request the official Abbott documentation through our clinical team. Modern Medical Solutions supplies the Amplatzer™ Amulet™ LAA Occluder to hospitals and cath labs across Tajikistan and Afghanistan.
Ordering Information
Catalog reference codes as published by Abbott. Contact us to confirm current availability.
| Reorder Number | Amulet Device Size/Lobe Diameter | Landing Zone Width (mm) | Lobe Length (mm) | Minimum Sheath Size (mm) | Minimum LAA Depth (mm) | Disc Diameter (mm) |
|---|---|---|---|---|---|---|
| 9-ACP2-007-016 | 16 | 11.0-13.0 | 7.5 | 12 F | ≥ 10 | 22 |
| 9-ACP2-007-018 | 18 | 13.0-15.0 | 7.5 | 12 F | ≥ 10 | 24 |
| 9-ACP2-007-020 | 20 | 15.0-17.0 | 7.5 | 12 F | ≥ 10 | 26 |
| 9-ACP2-007-022 | 22 | 17.0-19.0 | 7.5 | 12 F | ≥ 10 | 28 |
| 9-ACP2-010-025 | 25 | 19.0-22.0 | 10 | 12 F | ≥ 12 | 32 |
| 9-ACP2-010-028 | 28 | 22.0-25.0 | 10 | 14 F | ≥ 12 | 35 |
| 9-ACP2-010-031 | 31 | 25.0-28.0 | 10 | 14 F | ≥ 12 | 38 |
| 9-ACP2-010-034 | 34 | 28.0-31.0 | 10 | 14 F | ≥ 12 | 41 |
Reorder numbers and dimensions per the official Abbott Amplatzer™ Amulet™ LAA Occluder product page ordering information. Contents: 1 occluder, 145 cm delivery cable, plastic vise for delivery cable, hemostasis valve, loader, loading cable and plastic vise for loading cable, sheath adaptor (16–25 mm devices only).
Downloads & Documentation
Instructions for use (IFU), technical datasheets and clinical literature for the Amplatzer™ Amulet™ LAA Occluder are available on request from our clinical team.
Request DocumentationFrequently Asked Questions
- What is the Amplatzer™ Amulet™ LAA Occluder used for?
- The Amplatzer™ Amulet™ LAA Occluder is designed for complete occlusion of the left atrial appendage (LAA), thereby reducing the risk for ischemic stroke caused by atrial fibrillation. Current evidence suggests that percutaneous occlusion of the LAA reduces the risk of thromboembolic complications associated with non-valvular atrial fibrillation.
- What size range does the Amulet cover?
- The occluder offers landing size zones from 11 to 31 mm in diameter, across lobe diameters of 16, 18, 20, 22, 25, 28, 31 and 34 mm, so it can accommodate a wide range of LAA anatomies.
- How does proximal device positioning help?
- Proximal device positioning allows for proper placement regardless of the distal anatomy or the existence of multiple distal lobes. The device provides a complete seal with the ability to conform to the inner wall of the LAA, and it can be recaptured and repositioned if needed.
- What is included with each Amulet device?
- Each device is supplied with one occluder, a 145 cm delivery cable, a plastic vise for the delivery cable, a hemostasis valve, a loader, a loading cable and plastic vise for the loading cable, and a sheath adaptor (16–25 mm devices only).
