Astato® XSProduct Code (REF): PAGH143092
Astato® XS is Asahi’s high tip-load peripheral CTO guidewire. Its tapered tip provides excellent penetration through dense, fibrocalcific occlusive tissue, and the family is offered in two variations with different tip loads — Astato XS 20 (20 gf, 0.008/0.014 in tapered profile) and Astato XS 40 (40 gf, 0.009/0.014 in) — so operators can apply the wire escalation technique within a single wire platform. Hydrophilic coating with an uncoated ball tip preserves tactile feedback at the penetration point, and usable lengths of 180, 200 and 300 cm cover antegrade and long crossover or retrograde peripheral approaches.
Available under product codes PAGH143092, PAGH143392, PAGHW143094, PAGHW143394.
Sizes & Specifications
- Diameter
- 0.008 – 0.014 in
- Usable length
- 180 cm / 200 cm / 300 cm
- Tip load
- 20 gf (XS 20) / 40 gf (XS 40)
Manufacturer: Asahi Intecc Co., Ltd. · Reference source: medical.asahi-intecc.com
Design & Technology
Technical characteristics and diagrams as published by Asahi Intecc.

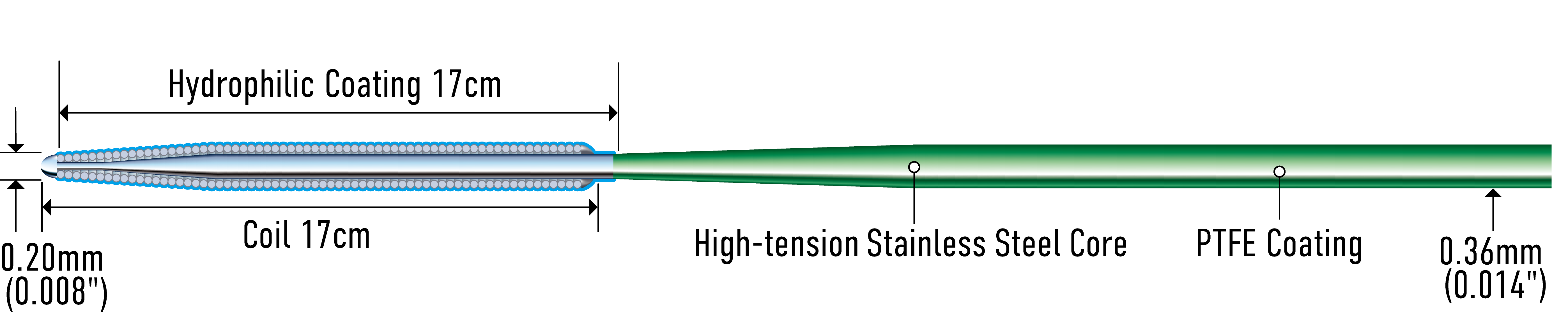

Structure
Product Identification & Specifications
Reference identifiers for procurement, registration and tender documentation.
| Product Code | PAGH143092 |
|---|---|
| REF Numbers | PAGH143092, PAGH143392, PAGHW143094, PAGHW143394 |
| Manufacturer | Asahi Intecc Co., Ltd. |
| Brand | Asahi Intecc |
| Product Family | Peripheral Interventions |
| Country Availability | Tajikistan, Afghanistan |
Clinical Applications
The Astato® XS is a peripheral cto guidewire in the Peripheral Interventions family from Asahi Intecc Co., Ltd., used by interventional specialists in procedures where a peripheral cto guidewire of this class is indicated. It is supplied in 4 configurations (catalog codes PAGH143092 through PAGHW143394) to match anatomical and procedural requirements.
For the complete indications for use, contraindications and instructions for use (IFU), request the official Asahi Intecc documentation through our clinical team. Modern Medical Solutions supplies the Astato® XS to hospitals and cath labs across Tajikistan and Afghanistan.
Ordering Information
Catalog reference codes as published by Asahi Intecc. Contact us to confirm current availability.
| Product Name | Catalog No. | Tip Shape | Usable Length | Outer Diameter | Coating | Coating Length | Coil length | Radiopaque Length |
|---|---|---|---|---|---|---|---|---|
| Astato XS 20 | PAGH143092 | Straight | 180cm | 0.20/0.36mm (0.008/0.014") | Hydrophilic (Uncoated Ball Tip) | 17cm | 17cm | 17cm |
| Astato XS 20 | PAGH143392 | Straight | 300cm | 0.20/0.36mm (0.008/0.014") | Hydrophilic (Uncoated Ball Tip) | 17cm | 17cm | 17cm |
| Astato XS 40 | PAGHW143094 | Straight | 200cm | 0.23/0.36mm (0.009/0.014") | Hydrophilic (Uncoated Ball Tip) | 60cm | 20cm | 20cm |
| Astato XS 40 | PAGHW143394 | Straight | 300cm | 0.23/0.36mm (0.009/0.014") | Hydrophilic (Uncoated Ball Tip) | 60cm | 20cm | 20cm |
Downloads & Documentation
Instructions for use (IFU), technical datasheets and clinical literature for the Astato® XS are available on request from our clinical team.
Request DocumentationFrequently Asked Questions
- What is the Astato® XS used for?
- The Astato® XS is a peripheral cto guidewire manufactured by Asahi Intecc, used by interventional physicians for precision vascular access procedures. Contact our clinical team for the full indications for use and instructions for use (IFU).
- What sizes does the Astato® XS come in?
- The Astato® XS is available in the following configurations: Diameter 0.008 – 0.014 in, Usable length 180 cm / 200 cm / 300 cm, Tip load 20 gf (XS 20) / 40 gf (XS 40).
- How can I order the Astato® XS?
- Modern Medical Solutions is the authorized Asahi Intecc distributor for Tajikistan and Afghanistan. Submit a documentation or ordering request through our contact form and our clinical team will confirm availability and lead time.
