ASAHI Gladius® 0.018Product Code (REF): PPW18R100S
ASAHI Gladius® 0.018 brings the Gladius concept to the 0.018 in peripheral platform as an enhanced device-delivery wire with great shaft support and maneuverability. Its 4.0 gf tip load keeps soft-wire versatility across simple stenoses through occluded lesions, with ACT ONE construction retaining the core wire for dependable torque response in occluded-lesion and multi-vessel procedures. The factory 1 mm pre-shaped tip (also available straight) spares manual shaping, and the polymer jacket with hydrophilic coating crosses calcified lesions and fibrous occlusions quickly. The balanced support shaft transmits push force efficiently through tortuous vessels and crossover approaches, and a 4 cm radiopaque segment marks the tip. Usable lengths: 200, 235 and 300 cm.
Available under product codes PPW18R100S, PPW18R200S, PPW18R300S, PPW18R100P, PPW18R200P, PPW18R300P.
Sizes & Specifications
- Diameter
- 0.018 in (0.45 mm)
- Tip load
- 4.0 gf
- Usable length
- 200 / 235 / 300 cm
- Coating
- Polymer jacket + hydrophilic
Manufacturer: Asahi Intecc Co., Ltd. · Reference source: medical.asahi-intecc.com
Design & Technology
Technical characteristics and diagrams as published by Asahi Intecc.
Moderate tip load with good support
- 1.0gf tip load for 0.018 inch make possible to use for a broad range of cases from simple stenosis to occluded lesions as a soft wire.

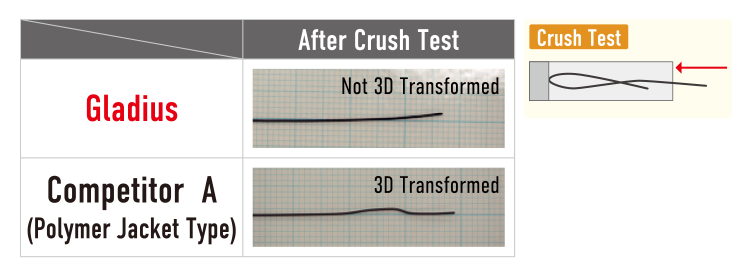

Tip durability
High level retention of core wire due to ACT ONE. Used for occluded lesion and muliti-vessel.

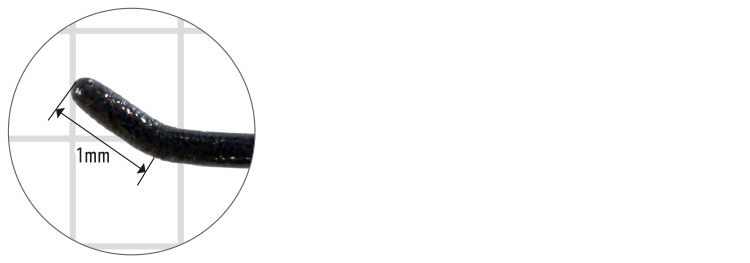

Mini-preshape
Tip pre-shaped in the manufacturing process with a 1mm curve. Easier to shape than shape manually.

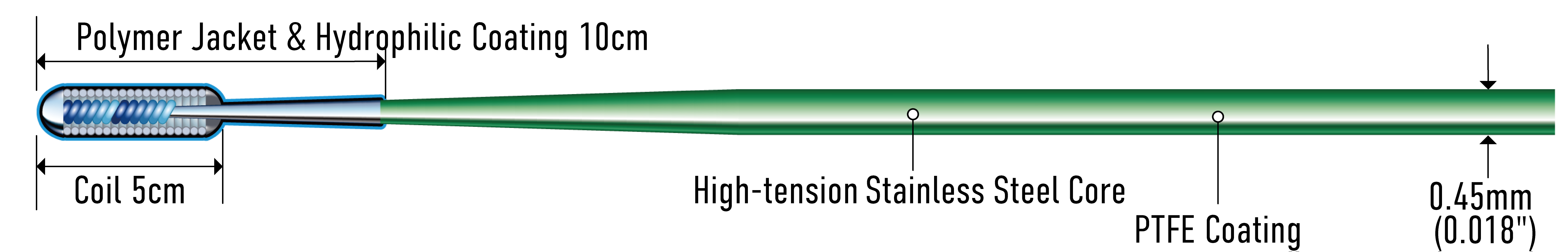

Structure
Product Identification & Specifications
Reference identifiers for procurement, registration and tender documentation.
| Product Code | PPW18R100S |
|---|---|
| REF Numbers | PPW18R100S, PPW18R200S, PPW18R300S, PPW18R100P, PPW18R200P, PPW18R300P |
| Manufacturer | Asahi Intecc Co., Ltd. |
| Brand | Asahi Intecc |
| Product Family | Peripheral Interventions |
| Country Availability | Tajikistan, Afghanistan |
Clinical Applications
The ASAHI Gladius® 0.018 is a polymer-jacketed peripheral guidewire — 0.018 in, 4.0 gf in the Peripheral Interventions family from Asahi Intecc Co., Ltd., used by interventional specialists in procedures where a polymer-jacketed peripheral guidewire — 0.018 in, 4.0 gf of this class is indicated. It is supplied in 6 configurations (catalog codes PPW18R100S through PPW18R300P) to match anatomical and procedural requirements.
For the complete indications for use, contraindications and instructions for use (IFU), request the official Asahi Intecc documentation through our clinical team. Modern Medical Solutions supplies the ASAHI Gladius® 0.018 to hospitals and cath labs across Tajikistan and Afghanistan.
Ordering Information
Catalog reference codes as published by Asahi Intecc. Contact us to confirm current availability.
| Product Name | Catalog No. | Tip Shape | Usable Length | Outer Diameter | Coating | Coating Length | Coil Length | Radiopaque Length |
|---|---|---|---|---|---|---|---|---|
| ASAHI Gladius 0.018 | PPW18R100S | Straight | 200cm | 0.45mm (0.018") | Polymer Jacket + Hydrophilic Coating | 10cm | 5cm | 4cm |
| ASAHI Gladius 0.018 | PPW18R200S | Straight | 235cm | 0.45mm (0.018") | Polymer Jacket + Hydrophilic Coating | 10cm | 5cm | 4cm |
| ASAHI Gladius 0.018 | PPW18R300S | Straight | 300cm | 0.45mm (0.018") | Polymer Jacket + Hydrophilic Coating | 10cm | 5cm | 4cm |
| ASAHI Gladius 0.018 | PPW18R100P | Pre-shape | 200cm | 0.45mm (0.018") | Polymer Jacket + Hydrophilic Coating | 10cm | 5cm | 4cm |
| ASAHI Gladius 0.018 | PPW18R200P | Pre-shape | 235cm | 0.45mm (0.018") | Polymer Jacket + Hydrophilic Coating | 10cm | 5cm | 4cm |
| ASAHI Gladius 0.018 | PPW18R300P | Pre-shape | 300cm | 0.45mm (0.018") | Polymer Jacket + Hydrophilic Coating | 10cm | 5cm | 4cm |
Downloads & Documentation
Instructions for use (IFU), technical datasheets and clinical literature for the ASAHI Gladius® 0.018 are available on request from our clinical team.
Request DocumentationFrequently Asked Questions
- What is the ASAHI Gladius® 0.018 used for?
- The ASAHI Gladius® 0.018 is a polymer-jacketed peripheral guidewire — 0.018 in, 4.0 gf manufactured by Asahi Intecc, used by interventional physicians for precision vascular access procedures. Contact our clinical team for the full indications for use and instructions for use (IFU).
- What sizes does the ASAHI Gladius® 0.018 come in?
- The ASAHI Gladius® 0.018 is available in the following configurations: Diameter 0.018 in (0.45 mm), Tip load 4.0 gf, Usable length 200 / 235 / 300 cm, Coating Polymer jacket + hydrophilic.
- How can I order the ASAHI Gladius® 0.018?
- Modern Medical Solutions is the authorized Asahi Intecc distributor for Tajikistan and Afghanistan. Submit a documentation or ordering request through our contact form and our clinical team will confirm availability and lead time.
