ASAHI Gladius® 0.014Product Code (REF): PPW14R100P
ASAHI Gladius® 0.014 is a polymer-jacketed peripheral guidewire built to treat a broad range of cases, from simple stenosis to occluded lesions, on a single 0.014 in platform. The 3.0 gf tip provides moderate penetration with soft-wire behaviour, while ACT ONE construction retains the core wire at a high level for reliable torque in occluded-lesion and multi-vessel work. The tip comes factory pre-shaped with a 1 mm curve (or straight) — easier and more consistent than manual shaping — and the polymer jacket with hydrophilic coating lets the wire cross even calcified lesions and fibrous occlusions quickly. A balanced support shaft transmits push force smoothly, suiting tortuous vessels and crossover approaches, with a 3 cm radiopaque segment for tip visibility. Usable lengths: 200, 235 and 300 cm.
Available under product codes PPW14R100P, PPW14R100S, PPW14R200P, PPW14R200S, PPW14R300P, PPW14R300S.
Sizes & Specifications
- Diameter
- 0.014 in (0.36 mm)
- Tip load
- 3.0 gf
- Usable length
- 200 / 235 / 300 cm
- Coating
- Polymer jacket + hydrophilic
Manufacturer: Asahi Intecc Co., Ltd. · Reference source: medical.asahi-intecc.com
Design & Technology
Technical characteristics and diagrams as published by Asahi Intecc.
Moderate tip load with good support
- 1.0gf tip load for 0.014 inch make possible to use for a broad range of cases from simple stenosis to occluded lesions as a soft wire.
Tip durability
High level retention of core wire due to ACT ONE. Used for occluded lesion and muliti-vessel.

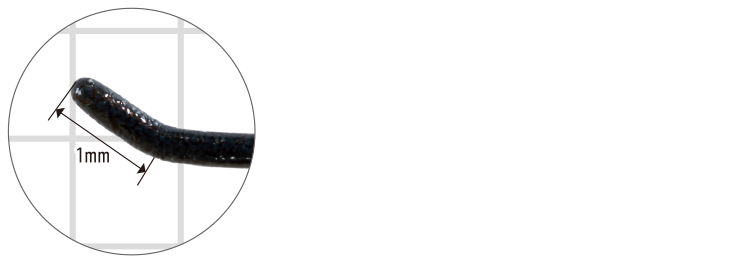

Mini-preshape
Tip pre-shaped in the manufacturing process with a 1mm curve. Easier to shape than shape manually.

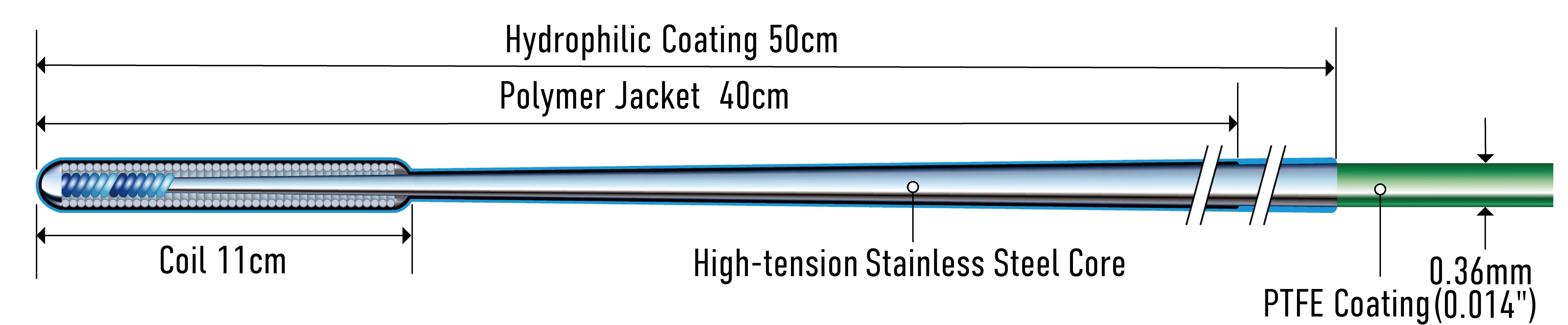

Structure
Product Identification & Specifications
Reference identifiers for procurement, registration and tender documentation.
| Product Code | PPW14R100P |
|---|---|
| REF Numbers | PPW14R100P, PPW14R100S, PPW14R200P, PPW14R200S, PPW14R300P, PPW14R300S |
| Manufacturer | Asahi Intecc Co., Ltd. |
| Brand | Asahi Intecc |
| Product Family | Peripheral Interventions |
| Country Availability | Tajikistan, Afghanistan |
Clinical Applications
The ASAHI Gladius® 0.014 is a polymer-jacketed peripheral guidewire — 0.014 in, 3.0 gf in the Peripheral Interventions family from Asahi Intecc Co., Ltd., used by interventional specialists in procedures where a polymer-jacketed peripheral guidewire — 0.014 in, 3.0 gf of this class is indicated. It is supplied in 6 configurations (catalog codes PPW14R100P through PPW14R300S) to match anatomical and procedural requirements.
For the complete indications for use, contraindications and instructions for use (IFU), request the official Asahi Intecc documentation through our clinical team. Modern Medical Solutions supplies the ASAHI Gladius® 0.014 to hospitals and cath labs across Tajikistan and Afghanistan.
Ordering Information
Catalog reference codes as published by Asahi Intecc. Contact us to confirm current availability.
| Product Name | Catalog No. | Tip Shape | Usable Length | Outer Diameter | Coating | Coating Length | Coil Length | Radiopaque Length |
|---|---|---|---|---|---|---|---|---|
| Gladius 0.014 | PPW14R100P | Pre-shape | 200cm | 0.36mm (0.014") | Polymer Jacket + Hydrophilic Coating | 50cm | 11cm | 3cm |
| Gladius 0.014 | PPW14R100S | Straight | 200cm | 0.36mm (0.014") | Polymer Jacket + Hydrophilic Coating | 50cm | 11cm | 3cm |
| Gladius 0.014 | PPW14R200P | Pre-shape | 235cm | 0.36mm (0.014") | Polymer Jacket + Hydrophilic Coating | 50cm | 11cm | 3cm |
| Gladius 0.014 | PPW14R200S | Straight | 235cm | 0.36mm (0.014") | Polymer Jacket + Hydrophilic Coating | 50cm | 11cm | 3cm |
| Gladius 0.014 | PPW14R300P | Pre-shape | 300cm | 0.36mm (0.014") | Polymer Jacket + Hydrophilic Coating | 50cm | 11cm | 3cm |
| Gladius 0.014 | PPW14R300S | Straight | 300cm | 0.36mm (0.014") | Polymer Jacket + Hydrophilic Coating | 50cm | 11cm | 3cm |
Downloads & Documentation
Instructions for use (IFU), technical datasheets and clinical literature for the ASAHI Gladius® 0.014 are available on request from our clinical team.
Request DocumentationFrequently Asked Questions
- What is the ASAHI Gladius® 0.014 used for?
- The ASAHI Gladius® 0.014 is a polymer-jacketed peripheral guidewire — 0.014 in, 3.0 gf manufactured by Asahi Intecc, used by interventional physicians for precision vascular access procedures. Contact our clinical team for the full indications for use and instructions for use (IFU).
- What sizes does the ASAHI Gladius® 0.014 come in?
- The ASAHI Gladius® 0.014 is available in the following configurations: Diameter 0.014 in (0.36 mm), Tip load 3.0 gf, Usable length 200 / 235 / 300 cm, Coating Polymer jacket + hydrophilic.
- How can I order the ASAHI Gladius® 0.014?
- Modern Medical Solutions is the authorized Asahi Intecc distributor for Tajikistan and Afghanistan. Submit a documentation or ordering request through our contact form and our clinical team will confirm availability and lead time.
