ASAHI Corsair® ArmetProduct Code (REF): WCSAR060-14N
Corsair Armet adapts the Corsair rotatable microcatheter platform for peripheral use, offering longer working lengths for guidewire support and exchange in below-the-knee and limb vessels.
Available under product codes WCSAR060-14N, WCSAR090-14N, WCSAR135-14N, WCSAR150-14N.
Sizes & Specifications
- Outer diameter
- 1.5F tip / 2.3F distal shaft
- Working length
- 60 cm / 90 cm / 135 cm / 150 cm
- Design
- Braided, rotatable shaft
Manufacturer: Asahi Intecc Co., Ltd. · Reference source: medical.asahi-intecc.com
Design & Technology
Technical characteristics and diagrams as published by Asahi Intecc.

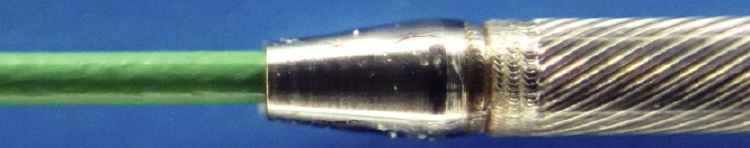

Lesion Crossability
Metal tip＋Lower entry profile that enhances entry into the calcific lesion. The metal tip is difficult to crush even when crossing calcific lesions.

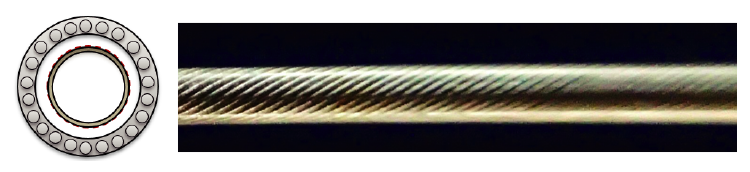

Kink resistance/rotation
Super SHINKA-Shaft makes the micro catheter more kink and compression resistant Super SHINKA -Shaft that enables a rotating operation and improves push-ability

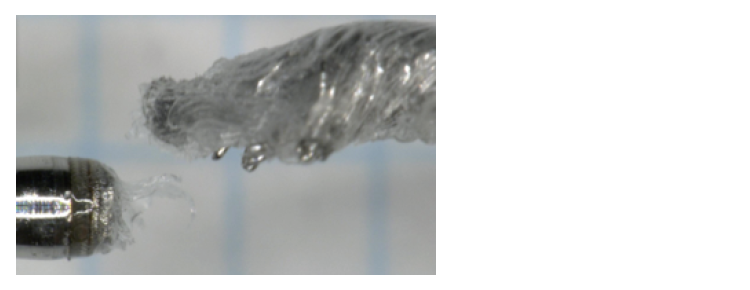

Limited rotation time
Up to 10 rotations per direction Release resistance by temporarily hand being released once 10 rotations are added. When further rotation is added, add reverse rotations. Do not rotate by both hands When excessively rotated, ASAHI Corsair Armet's tip can be separated. Rotating ASAHI Corsair Armet using one hand helps reduce the likelihood of tip separation.

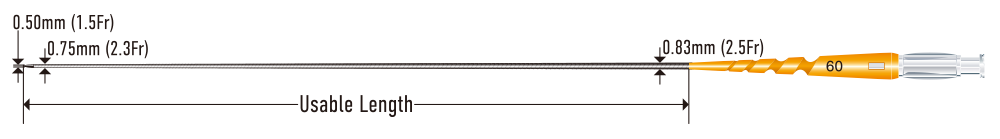

Structure
Product Identification & Specifications
Reference identifiers for procurement, registration and tender documentation.
| Product Code | WCSAR060-14N |
|---|---|
| REF Numbers | WCSAR060-14N, WCSAR090-14N, WCSAR135-14N, WCSAR150-14N |
| Manufacturer | Asahi Intecc Co., Ltd. |
| Brand | Asahi Intecc |
| Product Family | Peripheral Interventions |
| Country Availability | Tajikistan, Afghanistan |
Clinical Applications
The ASAHI Corsair® Armet is a peripheral microcatheter in the Peripheral Interventions family from Asahi Intecc Co., Ltd., used by interventional specialists in procedures where a peripheral microcatheter of this class is indicated. It is supplied in 4 configurations (catalog codes WCSAR060-14N through WCSAR150-14N) to match anatomical and procedural requirements.
For the complete indications for use, contraindications and instructions for use (IFU), request the official Asahi Intecc documentation through our clinical team. Modern Medical Solutions supplies the ASAHI Corsair® Armet to hospitals and cath labs across Tajikistan and Afghanistan.
Ordering Information
Catalog reference codes as published by Asahi Intecc. Contact us to confirm current availability.
| Product Name | Catalog No. | Usable Length | Tip(Outer diameter) | Distal shaft(Outer diameter) | Proximal shaft(Outer diameter) | Tip(Inner diamter) | Shaft(Inner diameter) |
|---|---|---|---|---|---|---|---|
| ASAHI Corasir Armet | WCSAR060-14N | 60cm | 0.50mm (1.5Fr) | 0.75mm (2.3Fr) | 0.83mm (2.5Fr) | 0.42mm (0.017") | 0.48mm (0.019") |
| ASAHI Corasir Armet | WCSAR090-14N | 90cm | 0.50mm (1.5Fr) | 0.75mm (2.3Fr) | 0.83mm (2.5Fr) | 0.42mm (0.017") | 0.48mm (0.019") |
| ASAHI Corasir Armet | WCSAR135-14N | 135cm | 0.50mm (1.5Fr) | 0.75mm (2.3Fr) | 0.83mm (2.5Fr) | 0.42mm (0.017") | 0.48mm (0.019") |
| ASAHI Corasir Armet | WCSAR150-14N | 150cm | 0.50mm (1.5Fr) | 0.75mm (2.3Fr) | 0.83mm (2.5Fr) | 0.42mm (0.017") | 0.48mm (0.019") |
Downloads & Documentation
Instructions for use (IFU), technical datasheets and clinical literature for the ASAHI Corsair® Armet are available on request from our clinical team.
Request DocumentationFrequently Asked Questions
- What is the ASAHI Corsair® Armet used for?
- The ASAHI Corsair® Armet is a peripheral microcatheter manufactured by Asahi Intecc, used by interventional physicians for precision vascular access procedures. Contact our clinical team for the full indications for use and instructions for use (IFU).
- What sizes does the ASAHI Corsair® Armet come in?
- The ASAHI Corsair® Armet is available in the following configurations: Outer diameter 1.5F tip / 2.3F distal shaft, Working length 60 cm / 90 cm / 135 cm / 150 cm, Design Braided, rotatable shaft.
- How can I order the ASAHI Corsair® Armet?
- Modern Medical Solutions is the authorized Asahi Intecc distributor for Tajikistan and Afghanistan. Submit a documentation or ordering request through our contact form and our clinical team will confirm availability and lead time.
