ASAHI Caravel®Product Code (REF): CRV135-19P
Caravel is a slender, highly flexible microcatheter used for distal guidewire support, exchange, and selective contrast injection in small, tortuous coronary vessels where a stiffer platform cannot track.
Available under product codes CRV135-19P, CRV150-19P.
Sizes & Specifications
- Outer diameter
- 1.4F tip / 1.9F distal shaft
- Inner lumen
- 0.017 in
- Working length
- 135 cm / 150 cm
- Design
- Non-braided flexible shaft
Manufacturer: Asahi Intecc Co., Ltd. · Reference source: medical.asahi-intecc.com
Design & Technology
Technical characteristics and diagrams as published by Asahi Intecc.
Resistance for rotation
Caravel is designed for pushing not spinning. Do not rotate the catheter.
Low profile
Ultra Low Profile Tip - Tip tapers to 0.019"(1.4Fr)

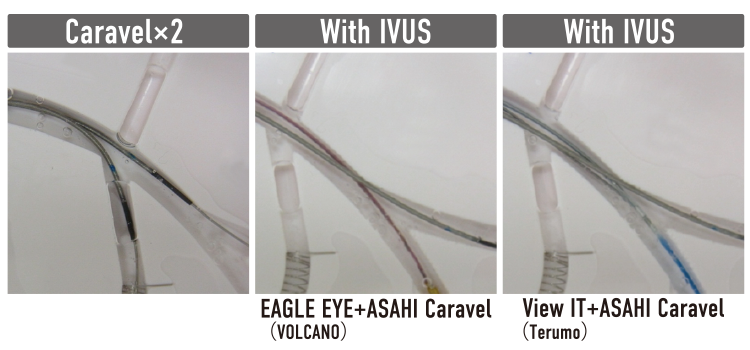

Less limitation for device selection 2 Caravel fit in a 6Fr GC* *ASAHI Hyperion 6Fr (ID:1.80mm (0.071inch)) One Caravel +IVUS in 7Fr G.C** **ASAHI Hyperion 7Fr (ID:2.05mm (0.081inch))
Push and crossability
ACT ONE Precision Braided Shaft Unique braiding delivers flexibility without compromising inner lumen maintains optimal guidewire performance. Smooth transition There is a smooth transition with subtle changes in the flexibility from the flexible tip to the shaft so the Caravel tracks well around an acute bend.

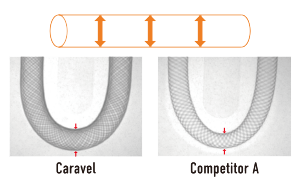

Kink resistance
Internal Lumen Integrity Enhanced resistance to kinking in tortuous anatomy facilitates optimal guidewire performance
Product Identification & Specifications
Reference identifiers for procurement, registration and tender documentation.
| Product Code | CRV135-19P |
|---|---|
| REF Numbers | CRV135-19P, CRV150-19P |
| Manufacturer | Asahi Intecc Co., Ltd. |
| Brand | Asahi Intecc |
| Product Family | Coronary Microcatheters & Guide Catheters |
| Country Availability | Tajikistan, Afghanistan |
Clinical Applications
The ASAHI Caravel® is a microcatheter in the Coronary Microcatheters & Guide Catheters family from Asahi Intecc Co., Ltd., used by interventional specialists in procedures where a microcatheter of this class is indicated. It is supplied in 2 configurations (catalog codes CRV135-19P through CRV150-19P) to match anatomical and procedural requirements.
For the complete indications for use, contraindications and instructions for use (IFU), request the official Asahi Intecc documentation through our clinical team. Modern Medical Solutions supplies the ASAHI Caravel® to hospitals and cath labs across Tajikistan and Afghanistan.
Ordering Information
Catalog reference codes as published by Asahi Intecc. Contact us to confirm current availability.
| Product Name | Catalog No. | Usable Length | Tip(O.D) | Distal Shaft(O.D) | Proximal Shaft(O.D) | Tip(I.D) | Shaft(I.D) | Hydrophilic Coating Length |
|---|---|---|---|---|---|---|---|---|
| ASAHI Caravel | CRV135-19P | 135cm | 0.48mm (1.4Fr) | 0.62mm (1.9Fr) | 0.85mm (2.6Fr) | 0.40mm (0.016") | 0.55mm (0.022") | 70cm |
| ASAHI Caravel | CRV150-19P | 150cm | 0.48mm (1.4Fr) | 0.62mm (1.9Fr) | 0.85mm (2.6Fr) | 0.40mm (0.016") | 0.55mm (0.022") | 85cm |
Downloads & Documentation
Instructions for use (IFU), technical datasheets and clinical literature for the ASAHI Caravel® are available on request from our clinical team.
Request DocumentationFrequently Asked Questions
- What is the ASAHI Caravel® used for?
- The ASAHI Caravel® is a microcatheter manufactured by Asahi Intecc, used by interventional physicians for precision vascular access procedures. Contact our clinical team for the full indications for use and instructions for use (IFU).
- What sizes does the ASAHI Caravel® come in?
- The ASAHI Caravel® is available in the following configurations: Outer diameter 1.4F tip / 1.9F distal shaft, Inner lumen 0.017 in, Working length 135 cm / 150 cm, Design Non-braided flexible shaft.
- How can I order the ASAHI Caravel®?
- Modern Medical Solutions is the authorized Asahi Intecc distributor for Tajikistan and Afghanistan. Submit a documentation or ordering request through our contact form and our clinical team will confirm availability and lead time.
