ASAHI SASUKE®Product Code (REF): SA145-33N
SASUKE is a compact support microcatheter that combines shaft pushability with a low-profile, oval-shaft tip for precise wire manipulation and torque transfer during CTO wire escalation.
Available under product code SA145-33N.
Sizes & Specifications
- Outer diameter
- 1.5F tip / 2.5–3.3F distal shaft
- Inner lumen
- 0.016 in
- Working length
- 145 cm
- Design
- Oval-shaft support catheter
Manufacturer: Asahi Intecc Co., Ltd. · Reference source: medical.asahi-intecc.com
Design & Technology
Technical characteristics and diagrams as published by Asahi Intecc.

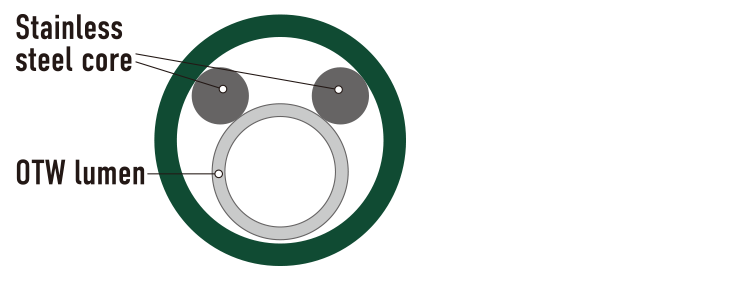

Kink resistance
Double stainless steel core maintains high kink resistance as well as increasing pushability

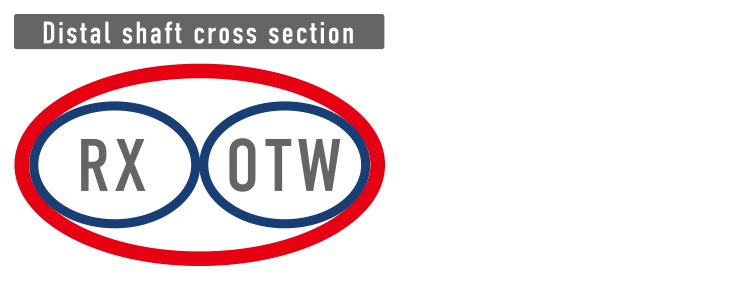

Risk Reduction/Stability
Oval design shaft Equalized the thickness of distal shaft reduces the risk of perforation OTW distal lumen by stiff GW Oval design stabilizes against vessel wall whereas Round design has less stability making the shaft roll.

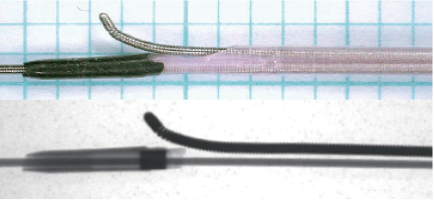

Trackability
Incorporates the same tapered soft tip used in ASAHI Corsair/ASAHI Caravel to maintain trackability in tortuous vessels.

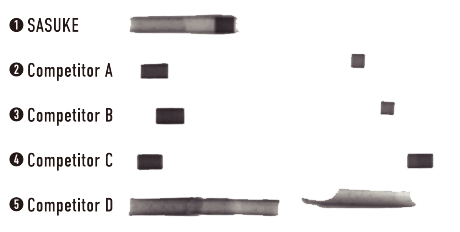

Visibility
Precise, reliable guide wire control and easy recognition of the guide wire from OTW lumen exit port.

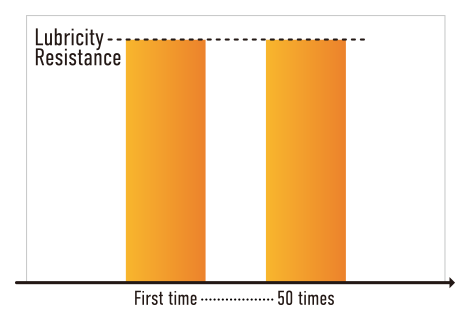

Lubricity
L³ coating (Long Lasting Lubricity coating) improves lubricity and durability of the coating.

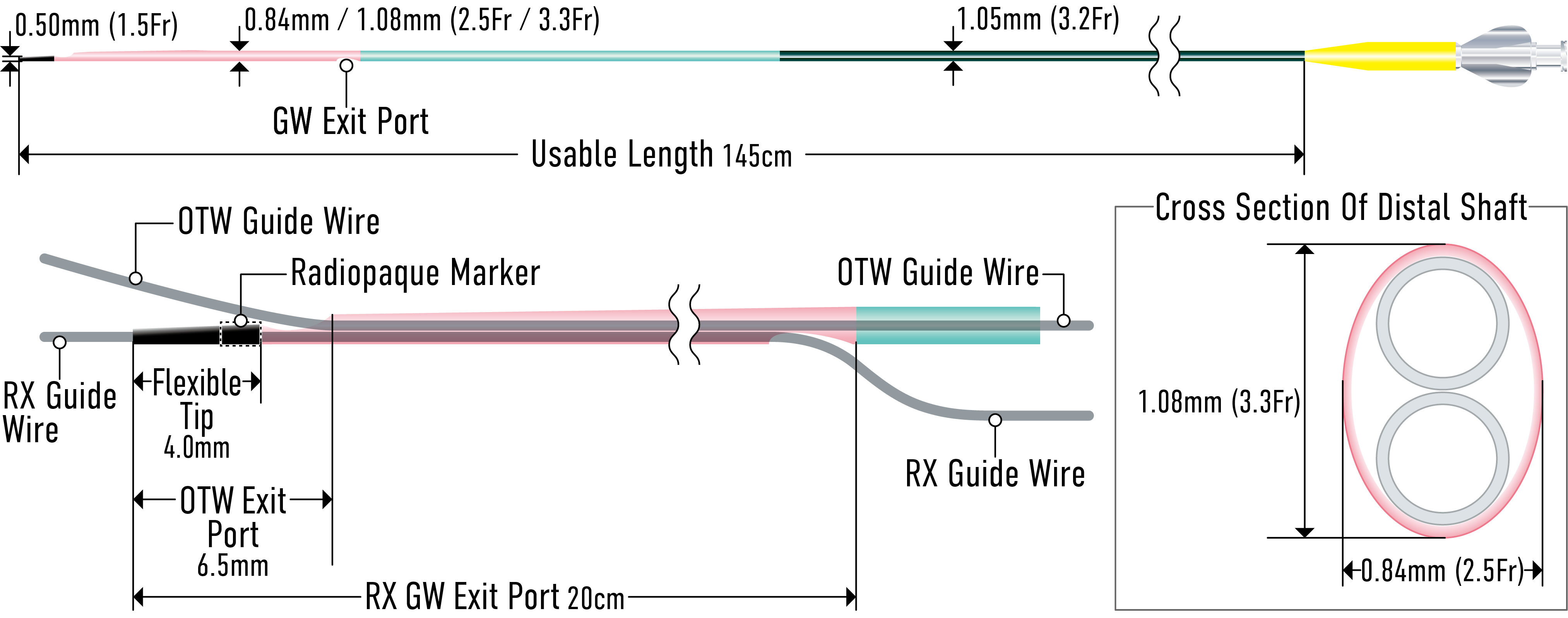

Structure
Product Identification & Specifications
Reference identifiers for procurement, registration and tender documentation.
| Product Code | SA145-33N |
|---|---|
| REF Number | SA145-33N |
| Manufacturer | Asahi Intecc Co., Ltd. |
| Brand | Asahi Intecc |
| Product Family | Coronary Microcatheters & Guide Catheters |
| Country Availability | Tajikistan, Afghanistan |
Clinical Applications
The ASAHI SASUKE® is a microcatheter in the Coronary Microcatheters & Guide Catheters family from Asahi Intecc Co., Ltd., used by interventional specialists in procedures where a microcatheter of this class is indicated. It is supplied under catalog code SA145-33N.
For the complete indications for use, contraindications and instructions for use (IFU), request the official Asahi Intecc documentation through our clinical team. Modern Medical Solutions supplies the ASAHI SASUKE® to hospitals and cath labs across Tajikistan and Afghanistan.
Ordering Information
Catalog reference codes as published by Asahi Intecc. Contact us to confirm current availability.
| Product Name | Catalog No. | Usable Length | Tip(O.D) | Distal Shaft(O.D) | Proximal Shaft(O.D) | Tip(I.D) | Shaft(I.D) | Hydrophilic Coating Length |
|---|---|---|---|---|---|---|---|---|
| ASAHI SASUKE | SA145-33N | 145cm | 0.50mm (1.5Fr) | 0.84mm/1.08mm (2.5Fr/3.3Fr) | 1.05mm (3.2Fr) | 0.40mm (0.016") | 0.43mm (0.017") | 38cm |
Downloads & Documentation
Instructions for use (IFU), technical datasheets and clinical literature for the ASAHI SASUKE® are available on request from our clinical team.
Request DocumentationFrequently Asked Questions
- What is the ASAHI SASUKE® used for?
- The ASAHI SASUKE® is a microcatheter manufactured by Asahi Intecc, used by interventional physicians for precision vascular access procedures. Contact our clinical team for the full indications for use and instructions for use (IFU).
- What sizes does the ASAHI SASUKE® come in?
- The ASAHI SASUKE® is available in the following configurations: Outer diameter 1.5F tip / 2.5–3.3F distal shaft, Inner lumen 0.016 in, Working length 145 cm, Design Oval-shaft support catheter.
- How can I order the ASAHI SASUKE®?
- Modern Medical Solutions is the authorized Asahi Intecc distributor for Tajikistan and Afghanistan. Submit a documentation or ordering request through our contact form and our clinical team will confirm availability and lead time.
