ASAHI CHIKAI® 10Product Code (REF): WAIN-CKI-10-200
CHIKAI 10 lowers the wire profile to 0.010 in for access to smaller distal intracranial vessels while preserving the steerability and shape retention of the CHIKAI platform.
Available under product codes WAIN-CKI-10-200, WAIN-CKI-10-300.
Sizes & Specifications
- Diameter
- 0.010 in (0.26 mm)
- Usable length
- 200 cm / 300 cm
- Coating
- Hydrophilic tip
Manufacturer: Asahi Intecc Co., Ltd. · Reference source: medical.asahi-intecc.com
Design & Technology
Technical characteristics and diagrams as published by Asahi Intecc.

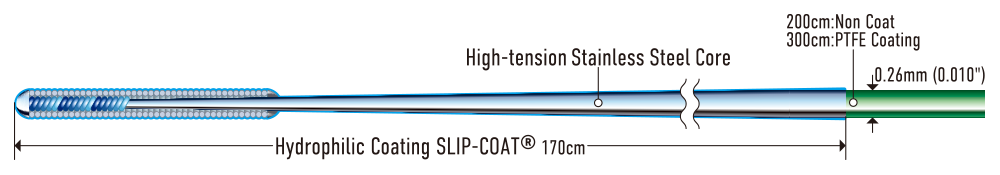

Structure
Product Identification & Specifications
Reference identifiers for procurement, registration and tender documentation.
| Product Code | WAIN-CKI-10-200 |
|---|---|
| REF Numbers | WAIN-CKI-10-200, WAIN-CKI-10-300 |
| Manufacturer | Asahi Intecc Co., Ltd. |
| Brand | Asahi Intecc |
| Product Family | Neurovascular Guidewires |
| Country Availability | Tajikistan, Afghanistan |
Clinical Applications
The ASAHI CHIKAI® 10 is a neuro guidewire in the Neurovascular Guidewires family from Asahi Intecc Co., Ltd., used by interventional specialists in procedures where a neuro guidewire of this class is indicated. It is supplied in 2 configurations (catalog codes WAIN-CKI-10-200 through WAIN-CKI-10-300) to match anatomical and procedural requirements.
For the complete indications for use, contraindications and instructions for use (IFU), request the official Asahi Intecc documentation through our clinical team. Modern Medical Solutions supplies the ASAHI CHIKAI® 10 to hospitals and cath labs across Tajikistan and Afghanistan.
Ordering Information
Catalog reference codes as published by Asahi Intecc. Contact us to confirm current availability.
| Product Name | Catalog No. | Usable Length | Outer Diameter | Coil Length | Radiopaque Length | Tip Shape | Hydrophilic Coating Length |
|---|---|---|---|---|---|---|---|
| ASAHI CHIKAI 10 | WAIN-CKI-10-200 | 200cm | 0.26mm (0.010") | 9.5cm | 3cm | Straight | 170cm |
| ASAHI CHIKAI 10 | WAIN-CKI-10-300 | 300cm | 0.26mm (0.010") | 9.5cm | 3cm | Straight | 170cm |
Downloads & Documentation
Instructions for use (IFU), technical datasheets and clinical literature for the ASAHI CHIKAI® 10 are available on request from our clinical team.
Request DocumentationFrequently Asked Questions
- What is the ASAHI CHIKAI® 10 used for?
- The ASAHI CHIKAI® 10 is a neuro guidewire manufactured by Asahi Intecc, used by interventional physicians for precision vascular access procedures. Contact our clinical team for the full indications for use and instructions for use (IFU).
- What sizes does the ASAHI CHIKAI® 10 come in?
- The ASAHI CHIKAI® 10 is available in the following configurations: Diameter 0.010 in (0.26 mm), Usable length 200 cm / 300 cm, Coating Hydrophilic tip.
- How can I order the ASAHI CHIKAI® 10?
- Modern Medical Solutions is the authorized Asahi Intecc distributor for Tajikistan and Afghanistan. Submit a documentation or ordering request through our contact form and our clinical team will confirm availability and lead time.
