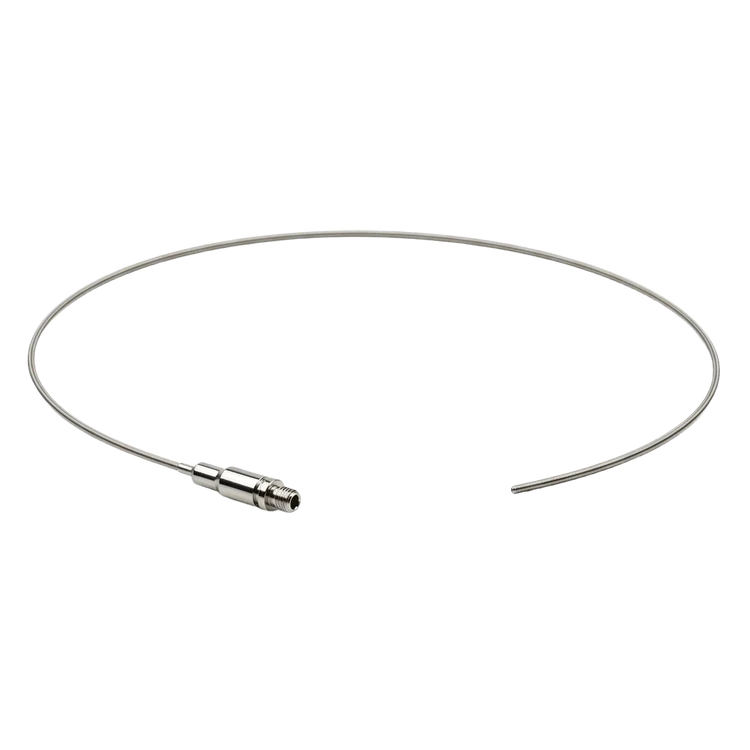

ASAHI Extension®Product Code (REF): AG149001
ASAHI Extension® is a 165 cm guidewire extension that docks onto the proximal end of an in-situ ASAHI PTCA guide wire, creating an exchange-length wire system without withdrawing the wire from its distal position. This allows the operator to exchange balloons, microcatheters, and other over-the-wire devices when only a standard 180 cm wire was placed initially — the combined length of approximately 345 cm provides sufficient external wire to hold distal position throughout device withdrawal and re-advancement. Particularly valuable in CTO PCI and complex intervention where the procedural strategy evolves mid-case and hard-won distal wire position must not be sacrificed for a device exchange. Compatible with all ASAHI 0.014 in PTCA guide wires.
Available under product code AG149001.
Sizes & Specifications
- Usable length
- 165 cm
- Combined length
- ≈ 345 cm (with 180 cm wire)
- Compatibility
- All ASAHI PTCA guide wires (0.014 in)
Manufacturer: Asahi Intecc Co., Ltd. · Reference source: medical.asahi-intecc.com
Design & Technology
Technical characteristics and diagrams as published by Asahi Intecc.

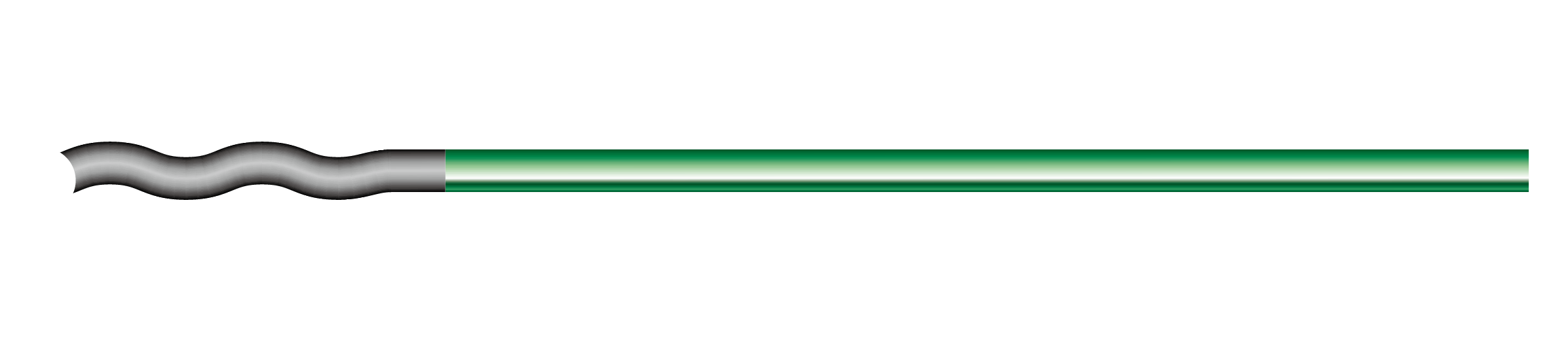

Structure
Product Identification & Specifications
Reference identifiers for procurement, registration and tender documentation.
| Product Code | AG149001 |
|---|---|
| REF Number | AG149001 |
| Manufacturer | Asahi Intecc Co., Ltd. |
| Brand | Asahi Intecc |
| Product Family | Coronary Microcatheters & Guide Catheters |
| Country Availability | Tajikistan, Afghanistan |
Clinical Applications
The ASAHI Extension® is a ptca guidewire extension — 165 cm in the Coronary Microcatheters & Guide Catheters family from Asahi Intecc Co., Ltd., used by interventional specialists in procedures where a ptca guidewire extension — 165 cm of this class is indicated. It is supplied under catalog code AG149001.
For the complete indications for use, contraindications and instructions for use (IFU), request the official Asahi Intecc documentation through our clinical team. Modern Medical Solutions supplies the ASAHI Extension® to hospitals and cath labs across Tajikistan and Afghanistan.
Ordering Information
Catalog reference codes as published by Asahi Intecc. Contact us to confirm current availability.
| Product Name | Catalog No. | Usable Length | Outer Diameter |
|---|---|---|---|
| ASAHI Extension | AG149001 | 165cm | 0.36mm (0.014") |
Downloads & Documentation
Instructions for use (IFU), technical datasheets and clinical literature for the ASAHI Extension® are available on request from our clinical team.
Request DocumentationFrequently Asked Questions
- What is the ASAHI Extension® used for?
- The ASAHI Extension® is a ptca guidewire extension — 165 cm manufactured by Asahi Intecc, used by interventional physicians for precision vascular access procedures. Contact our clinical team for the full indications for use and instructions for use (IFU).
- What sizes does the ASAHI Extension® come in?
- The ASAHI Extension® is available in the following configurations: Usable length 165 cm, Combined length ≈ 345 cm (with 180 cm wire), Compatibility All ASAHI PTCA guide wires (0.014 in).
- How can I order the ASAHI Extension®?
- Modern Medical Solutions is the authorized Asahi Intecc distributor for Tajikistan and Afghanistan. Submit a documentation or ordering request through our contact form and our clinical team will confirm availability and lead time.
