ASAHI Gladius® MG18 PV ESProduct Code (REF): PP18R004P
ASAHI Gladius® MG18 PV ES extends the MG composite core platform into the 0.018 in peripheral wire format, providing a dedicated CTO crossing option for operators using 0.018 in-compatible peripheral interventional systems. The 0.018 in wire diameter accommodates peripheral balloon catheters and stents designed for the 0.018 in wire platform — a format common in peripheral vascular intervention for vessels where the larger wire diameter provides additional column strength and tracking stability compared to 0.014 in equipment. The MG core delivers high-penetration rotational CTO crossing capability within the 0.018 in format, while the Extra Support (ES) shaft provides the column strength needed to advance 0.018 in-compatible device platforms through diseased, calcified peripheral anatomy. Available in 200 cm and 300 cm, 0.018 in (0.46 mm).
Available under product codes PP18R004P, PP18R204P, PP18R304P.
Sizes & Specifications
- Diameter
- 0.018 in (0.46 mm)
- Usable length
- 200 cm / 300 cm
- Design
- MG core / Extra Support shaft
- Application
- Femoropopliteal CTO
Manufacturer: Asahi Intecc Co., Ltd. · Reference source: medical.asahi-intecc.com
Design & Technology
Technical characteristics and diagrams as published by Asahi Intecc.

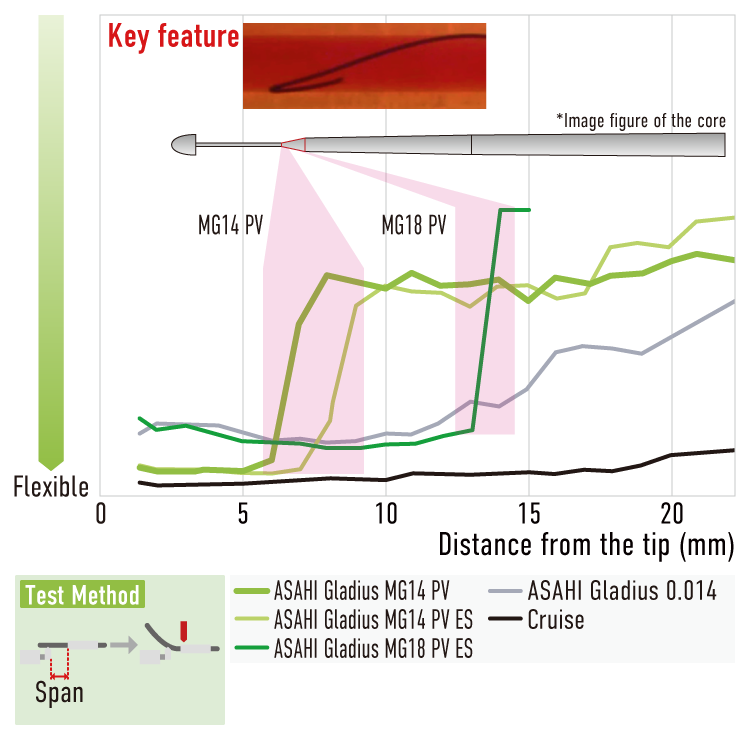

Narrow Loop Micro Gap By keeping a narrow loop when crosing the occluded lesion, GW is able to minimize resistance from the lesion. It will be able to cross smoothly while avoiding subintimal space expansion.

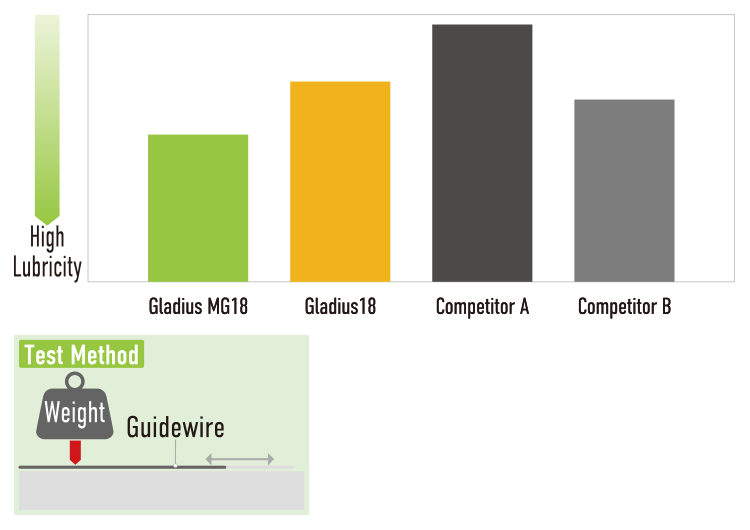

Lasting Lubricity
Polymer jacket & Hydrophilic coating Because of its high lubricity, ASAHI Gladius MG PV series is able to advance smoothly even in long occluded lesion.

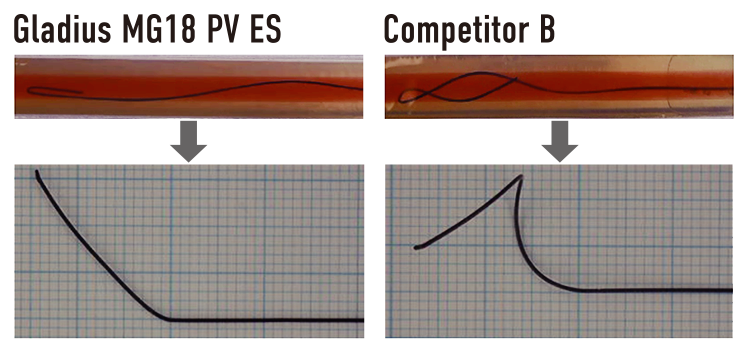

Tip durability
Creating narrow loop compare to competitors thus ACT ONE prevents deformation such as kink and torsion

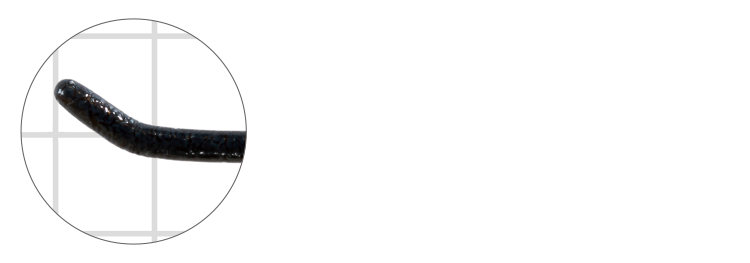

Mini Pre-shape
It can be shaped in a large curve accroding to the procedure, and also maintain high shape retention.
The above data was obtained by company standardized test, which may differ from industry standardized tests. The data does not prove that all devices have exactly the same performance with the samples used for these tests.
Structure
Product Identification & Specifications
Reference identifiers for procurement, registration and tender documentation.
| Product Code | PP18R004P |
|---|---|
| REF Numbers | PP18R004P, PP18R204P, PP18R304P |
| Manufacturer | Asahi Intecc Co., Ltd. |
| Brand | Asahi Intecc |
| Product Family | Peripheral Interventions |
| Country Availability | Tajikistan, Afghanistan |
Clinical Applications
The ASAHI Gladius® MG18 PV ES is a peripheral 0.018 in mg cto guidewire with extra support in the Peripheral Interventions family from Asahi Intecc Co., Ltd., used by interventional specialists in procedures where a peripheral 0.018 in mg cto guidewire with extra support of this class is indicated. It is supplied in 3 configurations (catalog codes PP18R004P through PP18R304P) to match anatomical and procedural requirements.
For the complete indications for use, contraindications and instructions for use (IFU), request the official Asahi Intecc documentation through our clinical team. Modern Medical Solutions supplies the ASAHI Gladius® MG18 PV ES to hospitals and cath labs across Tajikistan and Afghanistan.
Ordering Information
Catalog reference codes as published by Asahi Intecc. Contact us to confirm current availability.
| Product Name | Catalog No. | Tip Shape | Usable Length | Outer Diameter | Coating | Coating Length | Coil length | Radiopaque Length |
|---|---|---|---|---|---|---|---|---|
| ASAHI Gladius MG18 PV ES | PP18R004P | Pre-shape | 190cm | 0.46mm (0.018") | Polymer Jacket + Hydrophilic Coating | 10cm | 4.5cm | 4.5cm |
| ASAHI Gladius MG18 PV ES | PP18R204P | Pre-shape | 235cm | 0.46mm (0.018") | Polymer Jacket + Hydrophilic Coating | 10cm | 4.5cm | 4.5cm |
| ASAHI Gladius MG18 PV ES | PP18R304P | Pre-shape | 300cm | 0.46mm (0.018") | Polymer Jacket + Hydrophilic Coating | 10cm | 4.5cm | 4.5cm |
Downloads & Documentation
Instructions for use (IFU), technical datasheets and clinical literature for the ASAHI Gladius® MG18 PV ES are available on request from our clinical team.
Request DocumentationFrequently Asked Questions
- What is the ASAHI Gladius® MG18 PV ES used for?
- The ASAHI Gladius® MG18 PV ES is a peripheral 0.018 in mg cto guidewire with extra support manufactured by Asahi Intecc, used by interventional physicians for precision vascular access procedures. Contact our clinical team for the full indications for use and instructions for use (IFU).
- What sizes does the ASAHI Gladius® MG18 PV ES come in?
- The ASAHI Gladius® MG18 PV ES is available in the following configurations: Diameter 0.018 in (0.46 mm), Usable length 200 cm / 300 cm, Design MG core / Extra Support shaft, Application Femoropopliteal CTO.
- How can I order the ASAHI Gladius® MG18 PV ES?
- Modern Medical Solutions is the authorized Asahi Intecc distributor for Tajikistan and Afghanistan. Submit a documentation or ordering request through our contact form and our clinical team will confirm availability and lead time.
