Regalia® XS 1.0Product Code (REF): PAGP140000

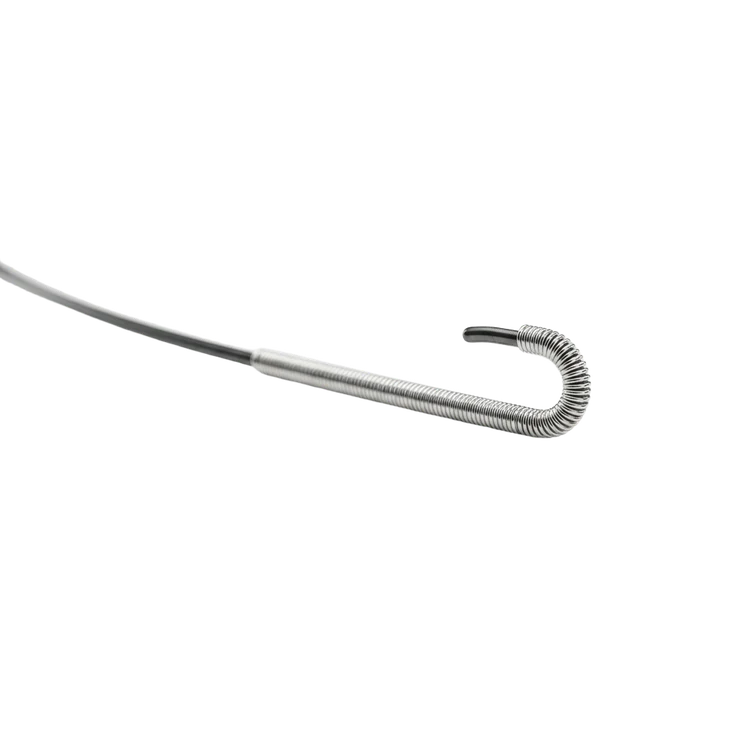

Regalia® XS 1.0 is a 1.0 gf tip-load peripheral guidewire with a reduced distal tip diameter (XS — Extra Small) for soft, atraumatic navigation in small, fragile, or heavily diseased tibial and pedal vessels. At 1.0 gf, Regalia XS 1.0 occupies the soft end of the peripheral guidewire spectrum — suitable for tracking through patent or minimally stenotic peripheral vessels to achieve distal access for angiography, pressure measurement, or device delivery, rather than for CTO crossing where higher tip loads are required. The reduced tip diameter improves trackability in small-calibre tibial vessels (< 2 mm) and allows first-pass access to the distal vasculature with minimal trauma. Compatible with 0.014 in-compatible microcatheters and low-profile peripheral balloon catheters. Available in 200 cm and 300 cm peripheral working lengths.
Available under product codes PAGP140000, PAGP140300.
Sizes & Specifications
- Diameter
- 0.014 in with XS tip
- Usable length
- 200 cm / 300 cm
- Tip load
- 1.0 gf
- Application
- Below-the-knee / pedal access
Manufacturer: Asahi Intecc Co., Ltd. · Reference source: medical.asahi-intecc.com
Design & Technology
Technical characteristics and diagrams as published by Asahi Intecc.
Structure
Product Identification & Specifications
Reference identifiers for procurement, registration and tender documentation.
| Product Code | PAGP140000 |
|---|---|
| REF Numbers | PAGP140000, PAGP140300 |
| Manufacturer | Asahi Intecc Co., Ltd. |
| Brand | Asahi Intecc |
| Product Family | Peripheral Interventions |
| Country Availability | Tajikistan, Afghanistan |
Clinical Applications
The Regalia® XS 1.0 is a soft peripheral access guidewire in the Peripheral Interventions family from Asahi Intecc Co., Ltd., used by interventional specialists in procedures where a soft peripheral access guidewire of this class is indicated. It is supplied in 2 configurations (catalog codes PAGP140000 through PAGP140300) to match anatomical and procedural requirements.
For the complete indications for use, contraindications and instructions for use (IFU), request the official Asahi Intecc documentation through our clinical team. Modern Medical Solutions supplies the Regalia® XS 1.0 to hospitals and cath labs across Tajikistan and Afghanistan.
Ordering Information
Catalog reference codes as published by Asahi Intecc. Contact us to confirm current availability.
| Product Name | Catalog No. | Tip Shape | Usable Length | Outer Diameter | Coating | Coating Length | Coil Length | Radiopaque Length |
|---|---|---|---|---|---|---|---|---|
| Regalia XS 1.0 | PAGP140000 | Straight | 180cm | 0.36mm (0.014") | Polymer Jacket + Hydrophilic Coating | 22cm | 12cm | 3cm |
| Regalia XS 1.0 | PAGP140300 | Straight | 300cm | 0.36mm (0.014") | Polymer Jacket + Hydrophilic Coating | 22cm | 12cm | 3cm |
Downloads & Documentation
Instructions for use (IFU), technical datasheets and clinical literature for the Regalia® XS 1.0 are available on request from our clinical team.
Request DocumentationFrequently Asked Questions
- What is the Regalia® XS 1.0 used for?
- The Regalia® XS 1.0 is a soft peripheral access guidewire manufactured by Asahi Intecc, used by interventional physicians for precision vascular access procedures. Contact our clinical team for the full indications for use and instructions for use (IFU).
- What sizes does the Regalia® XS 1.0 come in?
- The Regalia® XS 1.0 is available in the following configurations: Diameter 0.014 in with XS tip, Usable length 200 cm / 300 cm, Tip load 1.0 gf, Application Below-the-knee / pedal access.
- How can I order the Regalia® XS 1.0?
- Modern Medical Solutions is the authorized Asahi Intecc distributor for Tajikistan and Afghanistan. Submit a documentation or ordering request through our contact form and our clinical team will confirm availability and lead time.
